SAML SSO Configuration

• Troubleshooting

​

Overview

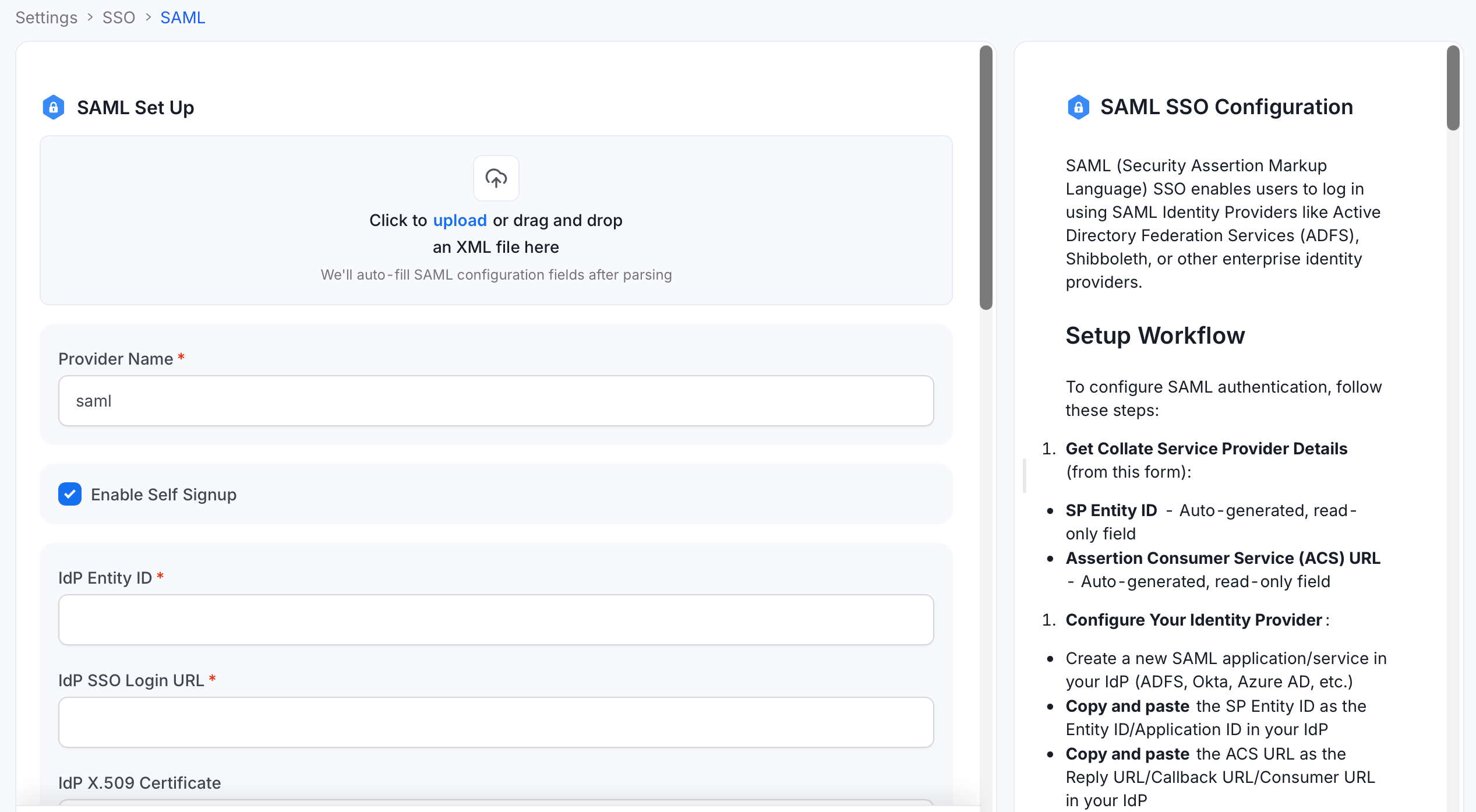

• Navigate to: Settings > SSO

• Select the service provider.

​

Configuration Fields

​

Client ID

• Definition: Client identifier for this SAML configuration.
• Example: saml-client-123
• Why it matters: Useful for tracking and management.
• Note: Optional in SAML setup.

​

Enable Self Signup

• Definition: Allows new users to auto-create accounts on first login.
• Options: Enabled | Disabled
• Example: Enabled

​

Public Key URLs

• Definition: URLs for verifying JWT signatures (used if SAML generates JWT).
• Example: ["https://yourapp.company.com/.well-known/jwks.json"]

​

IdP Entity ID

• Definition: Identifier for your Identity Provider (IdP).
• Example: https://adfs.company.com/adfs/services/trust

​

SSO Login URL

• Definition: URL where users are redirected to log in with your IdP.
• Example: https://adfs.company.com/adfs/ls/

​

IdP X.509 Certificate

• Definition: Certificate used to verify incoming SAML assertions.
• Note: Must include the full certificate with BEGIN and END lines.

​

Authority URL

• Definition: Used for IdP-initiated login flows.
• Example: https://adfs.company.com/adfs/ls/idpinitiatedsignon.aspx

​

Name ID Format

• Definition: Format used to identify users.
• Default/Example: urn:oasis:names:tc:SAML:2.0:nameid-format:emailAddress

​

Assertion Consumer Service (ACS) URL

• Definition: URL where SAML assertions are sent post-authentication.
• Example: https://openmetadata.company.com/api/v1/saml/acs

​

SP X.509 Certificate

• Definition: Collate’s public certificate.
• Note: Required if you want to sign authentication requests.

​

SP Private Key

• Definition: Used to sign SAML requests or decrypt assertions.
• Note: Must be stored securely.

​

SP Callback URL

• Definition: Redirect path after successful login.
• Example: https://openmetadata.company.com/saml/callback

​

Token Validity

• Definition: Token expiration time in seconds.
• Default: 3600
• Example: 7200

​

Send Signed Auth Request

• Definition: Whether to sign SAML requests from Collate.
• Default: false
• Example: true

​

Want Messages Signed

• Definition: Require SAML messages to be signed by IdP.
• Default: false
• Example: true

​

Want Assertions Signed

• Definition: Require assertions to be signed by IdP.
• Default: false
• Example: true

​

Debug Mode

• Definition: Enable detailed logs for SAML login attempts.
• Default: false
• Example: true
• Note: Use only for troubleshooting. Disable in production.

​

JWT Principal Claims

• Definition: Claims used to identify the user (when SAML generates JWT).
• Example: ["preferred_username", "email", "sub"]

​

JWT Principal Claims Mapping

• Definition: Maps SAML/JWT claims to Collate user fields.
• Example: ["email:email", "name:displayName", "firstName:given_name"]

​

Admin Principals

• Definition: Users with admin access in Collate.
• Example: ["[email protected]", "[email protected]"]

​

Principal Domain

• Definition: Default domain used to resolve user identity.
• Example: company.com

​

Enforce Principal Domain

• Definition: Restrict access to users within a specific domain.
• Default: false
• Example: true

​

Enable Secure Socket Connection

• Definition: Enable SSL/TLS for secure SAML communication.
• Default: false
• Example: true
• Note: Strongly recommended for production environments.

​

✅ Summary Table

​

Troubleshooting

./bootstrap/openmetadata-ops.sh remove-security-config --force
