LDAP SSO Configuration

• Troubleshooting

​

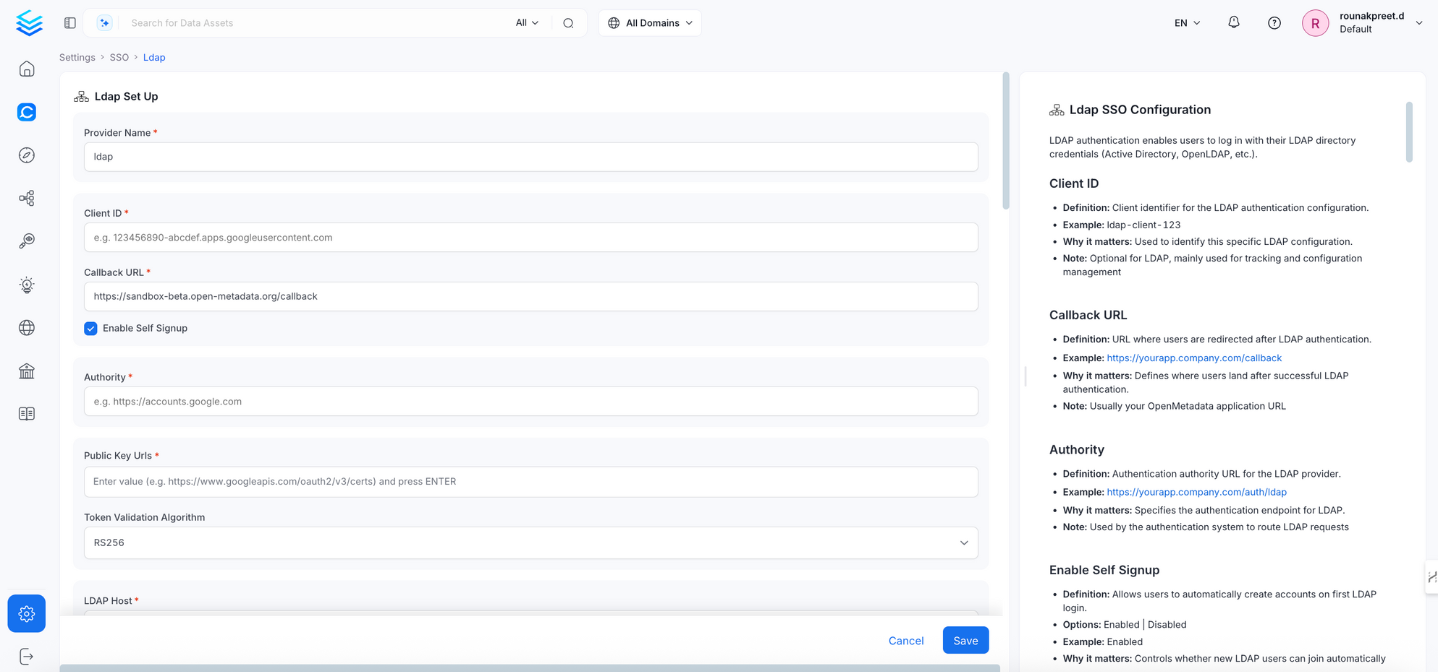

Overview

• Navigate to: Settings > SSO

• Select the service provider.

​

Configuration Fields

​

Provider Name

• Definition: A human-readable name for this LDAP SSO configuration instance.
• Example: Company LDAP, Corporate Directory, Internal LDAP
• Why it matters: Used for display and logging purposes.
• Note: This name does not impact authentication behavior.

​

Client ID

• Definition: Identifier for the LDAP authentication configuration.
• Example: ldap-client-123
• Why it matters: Helps track and manage LDAP configurations.
• Note: Optional for LDAP; mainly used for tracking.

​

Callback URL

• Definition: Redirect URI where users land after LDAP authentication.
• Example: https://yourapp.company.com/callback
• Why it matters: Defines the return URL post-authentication.
• Note: Typically your Collate application URL.

​

Authority

• Definition: Base URL for the LDAP authentication authority.
• Example: https://yourapp.company.com/auth/ldap
• Why it matters: Defines the endpoint Collate uses for LDAP requests.
• Note: Required for routing LDAP authentication calls.

​

Enable Self Signup

• Definition: Allows users to automatically create accounts on their first LDAP login.
• Options: Enabled | Disabled
• Example: Enabled
• Why it matters: Controls whether new LDAP users are auto-provisioned.
• Note: Disable for stricter access control.

​

Public Key URLs

• Definition: URLs where public keys are published for token verification.
• Example: ["https://yourapp.company.com/.well-known/jwks.json"]
• Why it matters: Used when LDAP integrates with token-based authentication (LDAP + JWT).
• Note: Optional for pure LDAP configurations.

​

Token Validation Algorithm

• Definition: Algorithm used to validate JWT tokens if LDAP uses token-based authentication.
• Options: RS256 | RS384 | RS512
• Default: RS256
• Example: RS256

​

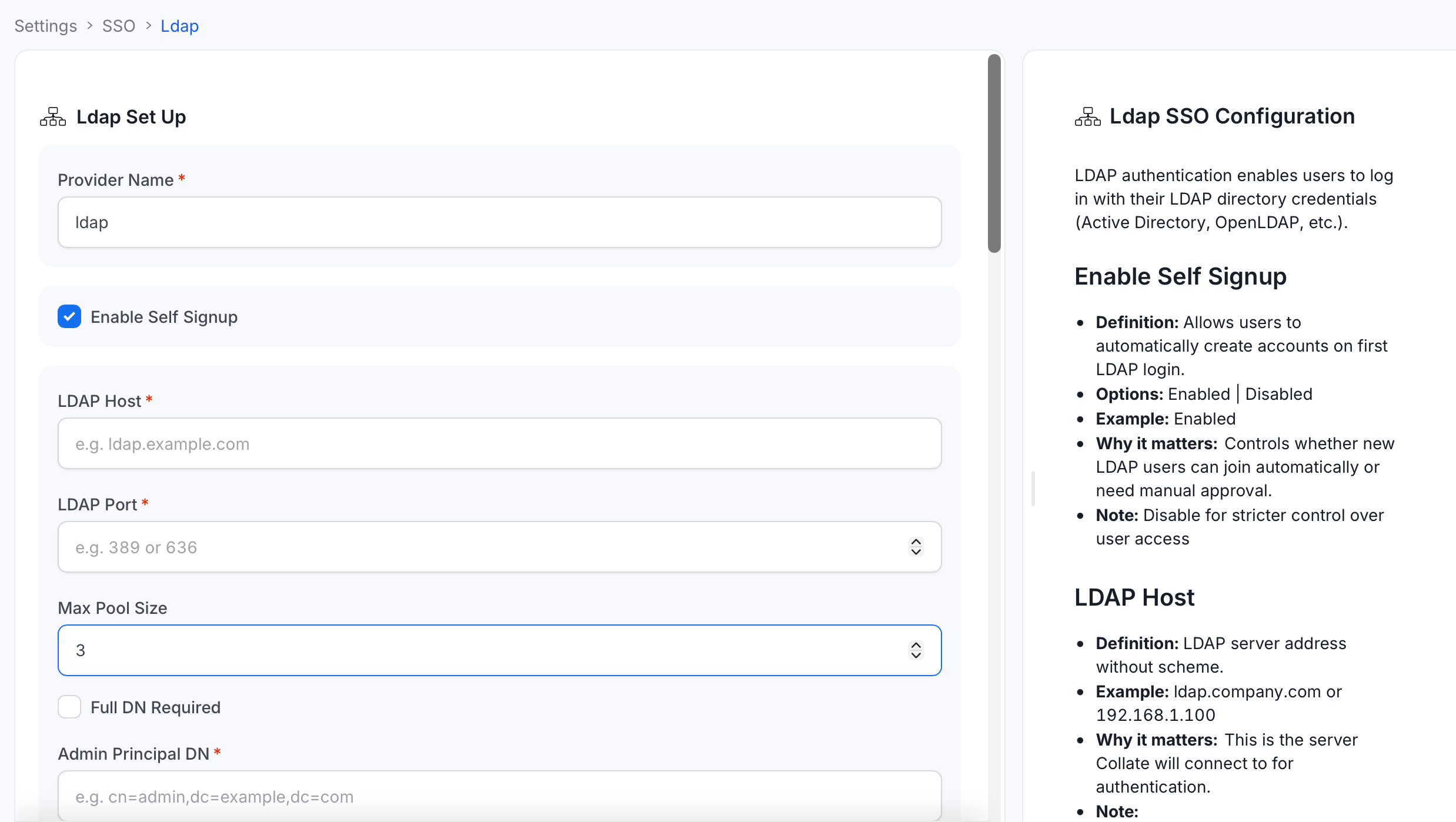

LDAP Host

• Definition: Hostname or IP address of your LDAP server.
• Example: ldap.company.com or 192.168.1.10
• Note: Do not include ldap:// or ldaps://.

​

LDAP Port

• Definition: Port for the LDAP server connection.
• Example: 389 (LDAP), 636 (LDAPS)
• Note:
  • Use 389 for standard LDAP
  • Use 636 for secure LDAP (LDAPS)

​

Max Pool Size

• Definition: Maximum number of concurrent connections in the LDAP pool.
• Default: 3
• Example: 5
• Why it matters: Controls connection performance and resource usage.

​

Full DN Required

• Definition: Whether users must log in using their full Distinguished Name (DN).
• Default: false
• Example: false
• Note:
  • false: Login with username only
  • true: Requires full DN (e.g., cn=john,ou=users,dc=company,dc=com)

​

Admin Principal DN

• Definition: Distinguished Name of the LDAP admin user used for searches.
• Example: cn=admin,ou=system,dc=company,dc=com
• Why it matters: Required to search for and authenticate users.
• Note: The account must have read access to users and groups.

​

Admin Password

• Definition: Password for the LDAP admin user.
• Example: adminPassword123
• Why it matters: Required for binding to the LDAP directory.
• Note: Store securely (e.g., in a secret manager).

​

SSL Enabled

• Definition: Enables secure LDAP (LDAPS).
• Default: false
• Example: true
• Why it matters: Encrypts communication between Collate and LDAP.
• Note:
  • true → Use LDAPS (port 636)
  • false → Use LDAP (port 389)

​

User Base DN

• Definition: Base DN under which user accounts are stored.
• Example: ou=users,dc=company,dc=com
• Why it matters: Defines where to search for user entries.

​

Group Base DN

• Definition: Base DN where group objects reside.
• Example: ou=groups,dc=company,dc=com
• Why it matters: Required for role-based authorization.
• Note: Optional if not using group-based role mapping.

​

Admin Role Name

• Definition: LDAP group that maps to Collate admin role.
• Example: Collate-Admins
• Why it matters: Members of this group get admin privileges.

​

All Attribute Name

• Definition: Attribute used to retrieve user attributes.
• Example: * or memberOf
• Why it matters: Defines which attributes to fetch from LDAP.

​

Email Attribute Name

• Definition: LDAP attribute containing user email.
• Example: mail
• Note: Common values include mail, email, or userPrincipalName.

​

Username Attribute Name

• Definition: LDAP attribute representing usernames.
• Example: uid or sAMAccountName
• Note:
  • Active Directory: sAMAccountName or userPrincipalName
  • OpenLDAP: uid or cn

​

Group Attribute Name

• Definition: Attribute that defines group membership.
• Example: memberOf
• Why it matters: Determines user’s LDAP group membership.

​

Group Member Attribute Name

• Definition: Attribute in group entries listing members.
• Example: member or uniqueMember

​

Auth Roles Mapping

• Definition: JSON mapping of LDAP groups to Collate roles.
• Example: {"LDAP-Admins": "Admin", "LDAP-Users": "User"}
• Why it matters: Automatically assigns roles based on group membership.

​

Auth Reassign Roles

• Definition: Roles that are re-evaluated each time a user logs in.
• Example: ["Admin", "DataConsumer"]

​

Trust Store Configuration

• Definition: Configuration for SSL/TLS trust management.
• Why it matters: Required for LDAPS with custom certificates.

​

Trust Store Configuration Type

• Definition: Type of SSL trust management.
• Options: TrustAll, JVMDefault, HostName, CustomTrustStore
• Example: CustomTrustStore
• Note:
  • TrustAll: Accepts all certificates (unsafe)
  • JVMDefault: Uses system trust store
  • CustomTrustStore: Uses a custom certificate store

​

Verify Hostname

• Definition: Validates LDAP server certificate hostname.
• Default: false
• Example: true

​

Examine Validity Dates

• Definition: Checks SSL certificate validity period.
• Default: false
• Example: true

​

Trust Store File Path

• Definition: Path to truststore file containing trusted CA certificates.
• Example: /path/to/truststore.jks

​

Trust Store File Password

• Definition: Password for accessing the truststore.
• Example: truststorePassword123

​

Trust Store File Format

• Definition: Format of the truststore file.
• Example: JKS or PKCS12

​

Allow Wildcards

• Definition: Accept wildcard certificates (e.g., *.company.com).
• Default: false
• Example: true

​

Acceptable Host Names

• Definition: List of hostnames valid for SSL validation.
• Example: ["ldap.company.com", "ldap-backup.company.com"]

​

JWT Principal Claims

• Definition: Claims used to identify users in LDAP + JWT setups.
• Example: ["preferred_username", "email", "sub"]

​

JWT Principal Claims Mapping

• Definition: Maps LDAP attributes to Collate user fields.
• Example: ["email:mail", "name:displayName", "firstName:givenName"]

​

Admin Principals

• Definition: Users with administrative privileges.
• Example: ["[email protected]", "[email protected]"]

​

Principal Domain

• Definition: Default domain for user principals.
• Example: company.com

​

Enforce Principal Domain

• Definition: Restricts logins to specific domains.
• Default: false
• Example: true

​

Enable Secure Socket Connection

• Definition: Enables SSL/TLS for LDAP communication.
• Default: false
• Example: true
• Note: Must be enabled for production deployments.

​

Summary Table

​

Troubleshooting

./bootstrap/openmetadata-ops.sh remove-security-config --force
