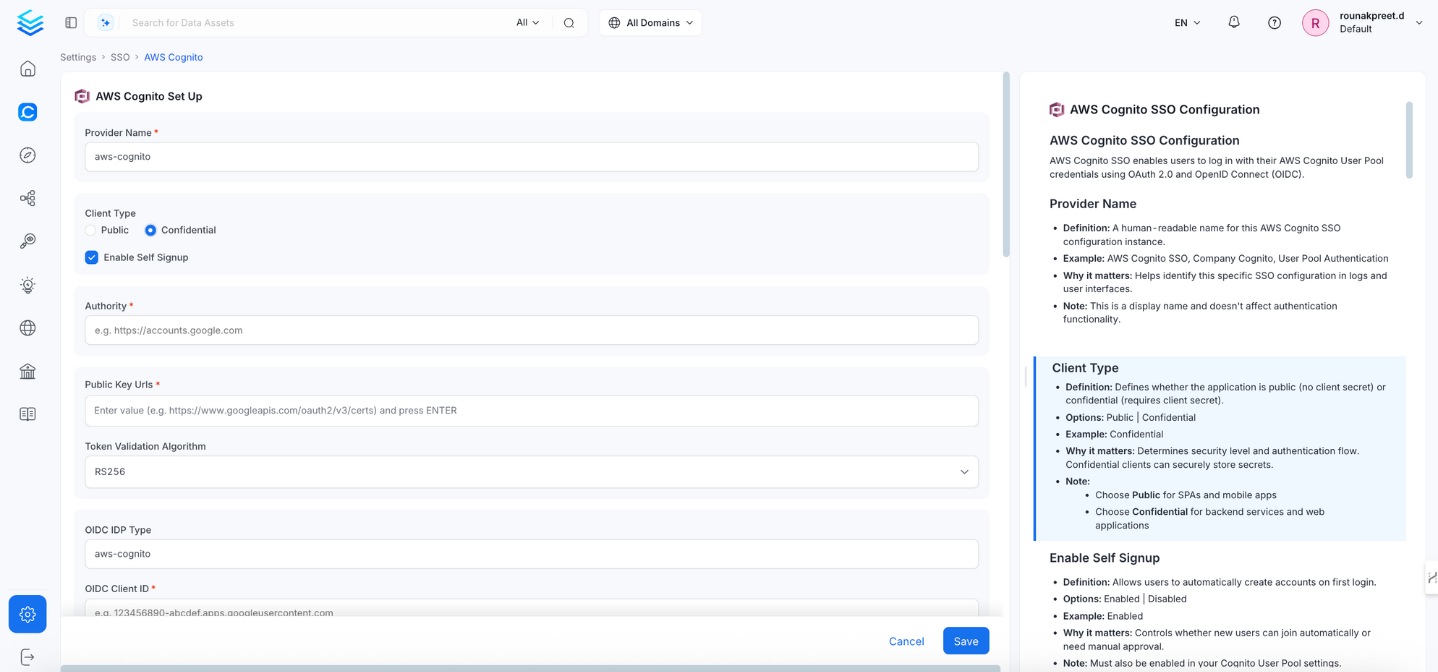

AWS Cognito SSO Configuration (Confidential)

• Troubleshooting

​

Overview

• Navigate to: Settings > SSO

• Select the service provider.

​

Configuration Fields

​

Provider Name

• Definition: A human-readable name for this AWS Cognito SSO configuration instance.
• Example: AWS Cognito SSO, Company Cognito, User Pool Authentication
• Why it matters: Helps identify this configuration in logs and UI.
• Note: This is a display name and doesn’t affect authentication.

​

Client Type

• Definition: Defines whether the application is public (no client secret) or confidential (requires client secret).
• Options: Public | Confidential
• Example: Confidential
• Why it matters: Determines security level and authentication flow. Confidential clients securely store secrets.
• Note:
  • Use Public for lightweight, client-side apps.
  • Use Confidential for backend or server-based applications.

​

Authority

• Definition: AWS Cognito User Pool domain that issues tokens.
• Example: https://cognito-idp.us-east-1.amazonaws.com/us-east-1_ABC123DEF
• Why it matters: Specifies which Cognito User Pool Collate authenticates against.
• Note: Use the format https://cognito-idp.{region}.amazonaws.com/{user-pool-id}.

​

Public Key URLs

• Definition: URL(s) where AWS Cognito publishes its public keys for token verification.
• Example: ["https://cognito-idp.us-east-1.amazonaws.com/us-east-1_ABC123DEF/.well-known/jwks.json"]
• Why it matters: Used to verify JWT token signatures from Cognito.
• Note: Typically auto-discovered; manual setup is rarely required.

​

Token Validation Algorithm

• Definition: Algorithm used to validate JWT token signatures.
• Options: RS256 | RS384 | RS512
• Default: RS256
• Example: RS256
• Why it matters: Must match the signing algorithm used by AWS Cognito.
• Note: Cognito defaults to RS256.

​

OIDC Client ID

• Definition: The App Client ID from your AWS Cognito User Pool.
• Example: 1a2b3c4d5e6f7g8h9i0j1k2l3m4n5o6p
• Why it matters: Identifies your application during authentication.
• Note: Found in AWS Console → Cognito → User Pools → App Integration → App Clients.

​

OIDC Client Secret

• Definition: Secret key for confidential client authentication.
• Example: a1b2c3d4e5f6g7h8i9j0k1l2m3n4o5p6q7r8s9t0
• Why it matters: Required for secure server-to-server communication.
• Note:
  • Generated in Cognito → User Pool → App Client → Generate Secret.
  • Store securely and rotate regularly.
  • Only visible for Confidential client types.

​

OIDC Request Scopes

• Definition: Scopes requested from AWS Cognito during authentication.
• Default: openid email profile
• Example: openid email profile aws.cognito.signin.user.admin
• Why it matters: Defines what user information Collate can access.
• Note: Must match scopes configured in your Cognito app client.

​

OIDC Discovery URI

• Definition: AWS Cognito’s OIDC metadata endpoint.
• Example: https://cognito-idp.us-east-1.amazonaws.com/us-east-1_ABC123DEF/.well-known/openid-configuration
• Why it matters: Allows Collate to auto-discover endpoints for tokens and authorization.
• Note: Replace {region} and {user-pool-id} with your values.

​

OIDC Use Nonce

• Definition: Prevents replay attacks by ensuring each authentication request is unique.
• Default: true
• Example: true

​

OIDC Preferred JWS Algorithm

• Definition: JWT signature verification algorithm.
• Default: RS256
• Example: RS256

​

OIDC Response Type

• Definition: Expected response type during OAuth authentication.
• Default: id_token
• Options: id_token | code
• Example: code
• Why it matters: The code flow is recommended for Confidential Clients.
• Note: Authorization Code flow provides enhanced security.

​

OIDC Disable PKCE

• Definition: Whether to disable Proof Key for Code Exchange (PKCE).
• Default: false
• Example: false
• Why it matters: PKCE protects against code interception attacks.
• Note: Should generally remain enabled (false).

​

OIDC Max Clock Skew

• Definition: Maximum allowed time difference when validating tokens.
• Example: 0 (seconds)

​

OIDC Client Authentication Method

• Definition: Method used to authenticate the client with AWS Cognito.
• Default: client_secret_basic
• Options: client_secret_basic | client_secret_post
• Example: client_secret_basic
• Why it matters: Must align with your app client configuration.

​

OIDC Token Validity

• Definition: Token expiration duration in seconds.
• Default: 0 (inherits provider default)
• Example: 3600
• Why it matters: Controls session duration and refresh timing.

​

OIDC Tenant

• Definition: Cognito User Pool ID.
• Example: us-east-1_ABC123DEF
• Why it matters: Uniquely identifies your Cognito User Pool.

​

OIDC Server URL

• Definition: Base URL for AWS Cognito’s authentication server.
• Example: https://cognito-idp.us-east-1.amazonaws.com
• Why it matters: Defines the token and userinfo API endpoints.

​

OIDC Callback URL

• Definition: Redirect URI where Cognito sends authentication responses.
• Example: https://yourapp.company.com/callback
• Note:
  • Must be registered in Cognito → User Pool → Hosted UI → Allowed Callback URLs.
  • Always use HTTPS in production.

​

OIDC Max Age

• Definition: Maximum authentication age before re-login is required.
• Example: 3600 (seconds)

​

OIDC Prompt

• Definition: Controls how Cognito prompts users during authentication.
• Options: none | login | consent | select_account
• Example: login
• Note:
  • login: Always prompt for credentials
  • none: Use existing session silently (SSO)

​

OIDC Session Expiry

• Definition: Session expiration duration (seconds).
• Default: 604800 (7 days)

​

JWT Principal Claims

• Definition: Claims used to identify users.
• Example: ["cognito:username", "email", "sub"]
• Note: Common Cognito claims include cognito:username, email, sub, preferred_username.

​

JWT Principal Claims Mapping

• Definition: Maps JWT claims to Collate user attributes.
• Example: ["email:email", "name:name", "firstName:given_name"]
• Note: Use format "openmetadata_field:jwt_claim".

​

Admin Principals

• Definition: Users with administrative privileges in Collate.
• Example: ["[email protected]", "[email protected]"]

​

Principal Domain

• Definition: Default domain for user principals.
• Example: company.com

​

Enforce Principal Domain

• Definition: Enforces domain restriction for user logins.
• Default: false
• Example: true

​

Enable Secure Socket Connection

• Definition: Enables SSL/TLS for secure connections.
• Default: false
• Example: true
• Note: Must be enabled in production environments.

​

Summary Table

​

Troubleshooting

./bootstrap/openmetadata-ops.sh remove-security-config --force
