Google SSO Configuration (Confidential Client)

• Troubleshooting

​

Overview

1. Navigate to Settings > SSO.
2. Select the service provider.

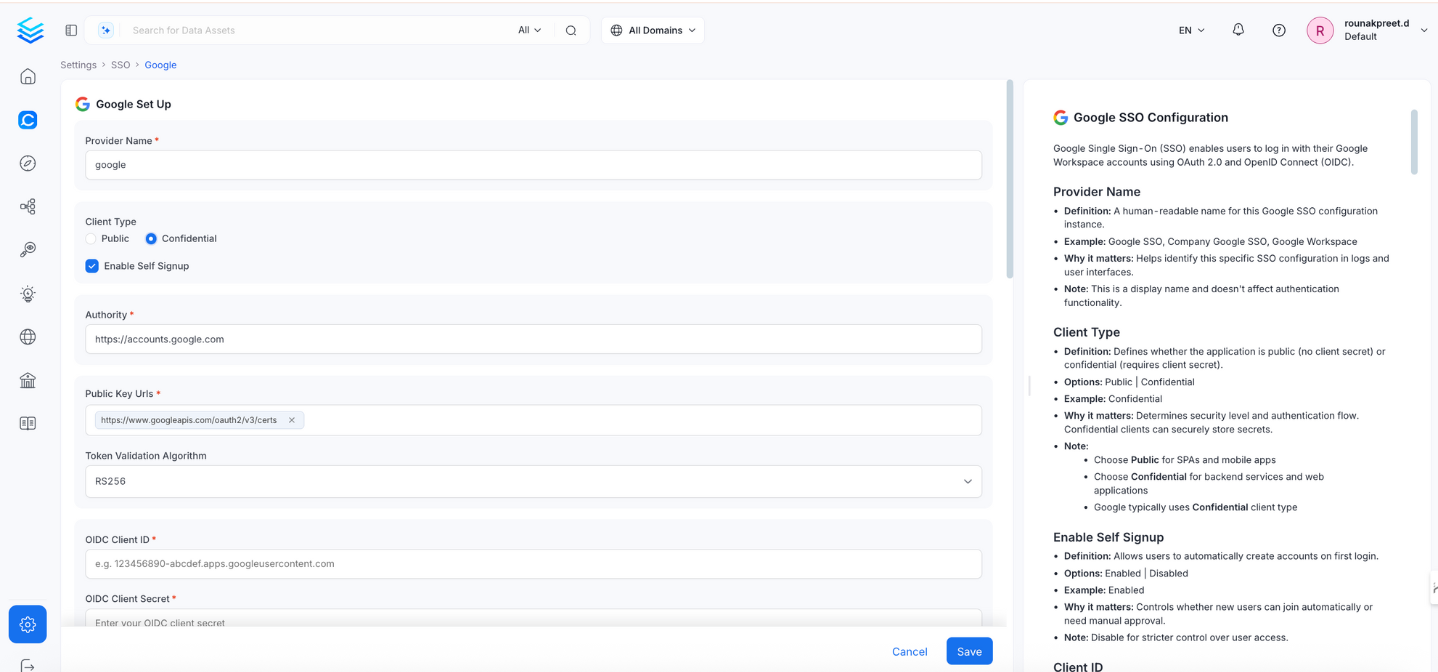

3. Click Configure to set up Single Sign-On (SSO). See Confidential Configuration Fields.
4. Click Save to finish the SSO configuration.

​

Confidential Configuration Fields

​

Authentication Configuration

​

Provider Name

• Definition: A human-readable name for this Google SSO configuration instance.
• Example: Google SSO, Company Google SSO, Google Workspace
• Why it matters: Helps identify this specific SSO configuration in logs and user interfaces.
• Note: This is a display name and doesn’t affect authentication functionality.

​

Client Type

• Definition: Defines whether the application is public (no client secret) or confidential (requires client secret).
• Options: Public | Confidential
• Example: Confidential
• Why it matters: Determines security level and authentication flow. Confidential clients can securely store secrets.
• Note:
  • Use Confidential for backend services and web applications.
  • Use Public for SPAs and mobile apps.
  • Google typically uses Confidential client type.

​

Enable Self Signup

• Definition: Allows users to automatically create Collate accounts on their first SSO login.
• Options: Enabled | Disabled
• Example: Enabled
• Why it matters: Controls whether new users join automatically or need manual provisioning.
• Note: Disable for stricter control over user access.

​

Authority

• Definition: Google’s authorization server endpoint for OAuth 2.0 authentication.
• Default: https://accounts.google.com
• Why it matters: Specifies the Google authorization server that handles authentication requests.
• Note: This is Google’s standard OAuth 2.0 authorization endpoint and typically doesn’t need to be changed.

​

OIDC Configuration

​

OIDC Client ID

• Definition: OAuth 2.0 client ID assigned to your application in Google Cloud Console.
• Example: 123456789012-abcdefghijklmnopqrstuvwxyz123456.apps.googleusercontent.com
• Why it matters: Identifies your application to Google in OIDC flows.
• Note: Found in Google Cloud Console → APIs & Services → Credentials → OAuth 2.0 Client IDs.

​

OIDC Client Secret

• Definition: Secret key for confidential client authentication with Google.
• Example: GOCSPX-abcdefghijklmnopqrstuvwxyz123456
• Why it matters: Required for confidential clients to securely authenticate with Google.
• Note:
  • Generate in Google Cloud Console → APIs & Services → Credentials.
  • Store securely and rotate regularly.

​

OIDC Request Scopes

• Definition: Permissions requested from Google during authentication.
• Default: openid email profile
• Example: openid email profile https://www.googleapis.com/auth/userinfo.email
• Why it matters: Determines what user information Collate can access.
• Note: openid, email, and profile are required for basic user identification.

​

OIDC Discovery URI

• Definition: Google’s OpenID Connect metadata endpoint.
• Default: https://accounts.google.com/.well-known/openid-configuration
• Why it matters: Allows Collate to automatically discover Google’s OIDC endpoints.
• Note: Google’s standard discovery endpoint — rarely needs to be changed.

​

OIDC Callback URL

• Definition: URL where Google redirects after authentication.
• Example: https://openmetadata.company.com/callback
• Why it matters: Must be registered in your Google Cloud Console configuration.
• Note:
  • This field is read-only — it is auto-populated as {your-domain}/callback.
  • Copy this URL and add it to Google Cloud Console → OAuth 2.0 Client → Authorized redirect URIs.

​

OIDC Prompt

• Definition: Controls Google’s authentication prompt behavior.
• Options: none, login, consent, select_account
• Example: select_account
• Why it matters: Defines how the login experience behaves for users.
• Note:
  • login: Always prompt for credentials.
  • consent: Prompt for permissions.
  • select_account: Show account picker.
  • none: Silent authentication (may fail if user isn’t logged in).

​

OIDC Custom Parameters

• Definition: Additional parameters to include in OIDC authentication requests.
• Example: {"hd": "company.com", "prompt": "select_account"}
• Why it matters: Allows customization of Google authentication behavior.
• Note:
  • hd: Hosted domain — restricts login to a specific Google Workspace domain.
  • prompt: Controls authentication prompts.
  • login_hint: Pre-fills the email address field.

​

Advanced Configuration

OIDC Use Nonce

• Definition: Security feature to prevent replay attacks in OIDC flows.
• Default: false
• Why it matters: Enhances security by ensuring each authentication request is unique.

OIDC Disable PKCE

• Definition: Whether to disable Proof Key for Code Exchange.
• Default: false
• Why it matters: PKCE adds security to the authorization code flow.
• Note: Should remain false (enabled) in most cases.

OIDC Max Clock Skew

• Definition: Maximum allowed time difference in seconds between systems when validating tokens.
• Example: 0
• Why it matters: Prevents token validation failures due to minor clock differences between servers.

OIDC Token Validity

• Definition: Duration in seconds that tokens remain valid.
• Default: 3600
• Example: 3600
• Why it matters: Balances token lifetime against security requirements.

OIDC Max Age

• Definition: Maximum authentication age in seconds before re-authentication is required.
• Example: 3600
• Why it matters: Controls how frequently users must re-authenticate.

OIDC Session Expiry

• Definition: How long user sessions remain valid in seconds.
• Default: 604800 (7 days)
• Why it matters: Controls session timeout for confidential clients.

​

JWT Claims

​

JWT Principal Claims

• Definition: JWT fields used to identify users in Collate. The first claim that returns a value is used.
• Default: ["email", "preferred_username", "sub"]
• Example: ["email", "sub", "preferred_username"]
• Why it matters: Determines how users are matched to their Collate accounts.
• Note:
  • At least one claim must correspond to the user’s email address.
  • Common Google claims: email (recommended), sub, preferred_username.
  • Order matters — the first matching claim is used.

​

JWT Principal Claims Mapping

["email:email", "username:preferred_username"]

​

JWT Team Claim Mapping

• Definition: Google Workspace claim containing team or department information for automatic team assignment in Collate.
• Example: department, groups, organizationalUnit
• Why it matters: Automatically assigns users to existing Collate teams based on their Google Workspace attributes at login.
• Note:
  • Common custom attributes can be configured in Google Admin Console.
  • For group-based teams, use the groups claim (requires appropriate OAuth scopes).
  • The team must already exist in Collate for assignment to work.
  • Only teams of type Group can be auto-assigned. Team names are case-sensitive.

​

Authorizer Configuration

​

Admin Principals

• Definition: Users granted admin access in Collate.
• Example: ["admin", "superuser"]
• Why it matters: Grants full admin privileges in Collate.
• Note: Enter usernames only — not email addresses. Use the part of the email before @ (for example, for admin@company.com, enter admin).

​

Principal Domain

• Definition: Default domain for user principals.
• Example: company.com
• Why it matters: Used to construct full user identifiers when only a username is provided.
• Note: Typically your organization’s Google Workspace domain.

​

Enforce Principal Domain

• Definition: Restricts login to users belonging to the configured Principal Domain.
• Default: false
• Example: true
• Why it matters: Adds an extra layer of security by limiting access to a specific domain.
• Note: Useful when combined with the Google Workspace hd OIDC Custom Parameter.

​

Enable Secure Socket Connection

• Definition: Enables SSL/TLS for all SSO communication.
• Default: false
• Example: true
• Why it matters: Ensures encrypted communication between Collate and Google.
• Note: Recommended in production environments.

​

Allowed Domains

• Definition: List of email domains permitted to authenticate with Collate.
• Example: ["company.com", "contractor-company.com"]
• Why it matters: Provides fine-grained control over which email domains can log in via Google SSO.
• Note:
  • Works in conjunction with Enforce Principal Domain.
  • Leave empty if you only use a single domain configured in Principal Domain.
  • Useful when you have multiple Google Workspace domains or want to allow specific external domains.

​

Use Roles From Provider

• Definition: Use roles returned by Google in the token to assign Collate roles.
• Default: false
• Why it matters: Enables role-based access control driven by your Google Workspace role assignments.
• Note: Roles must be included in the Google token and must match existing Collate role names.

​

Default OAuth Role

• Definition: Default role assigned to new users when they first sign in via SSO self-signup.
• Example: DataConsumer
• Why it matters: Controls the starting permission level for new users who join through self-signup.
• Note: Leave empty to create users without any role. Requires Enable Self Signup to be active. The role must already exist in Collate.

​

Summary

​

Troubleshooting

./bootstrap/openmetadata-ops.sh remove-security-config --force
