SAML SSO Configuration

• Troubleshooting

​

Overview

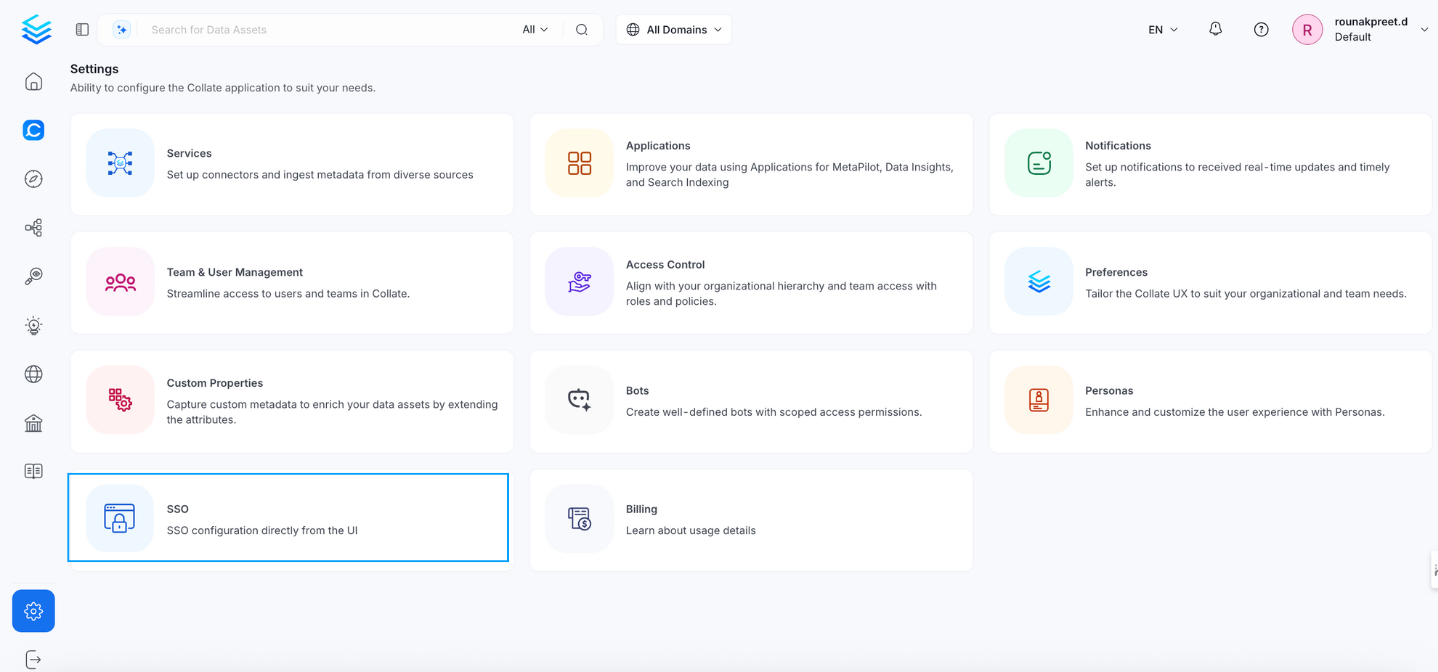

1. Navigate to Settings > SSO.

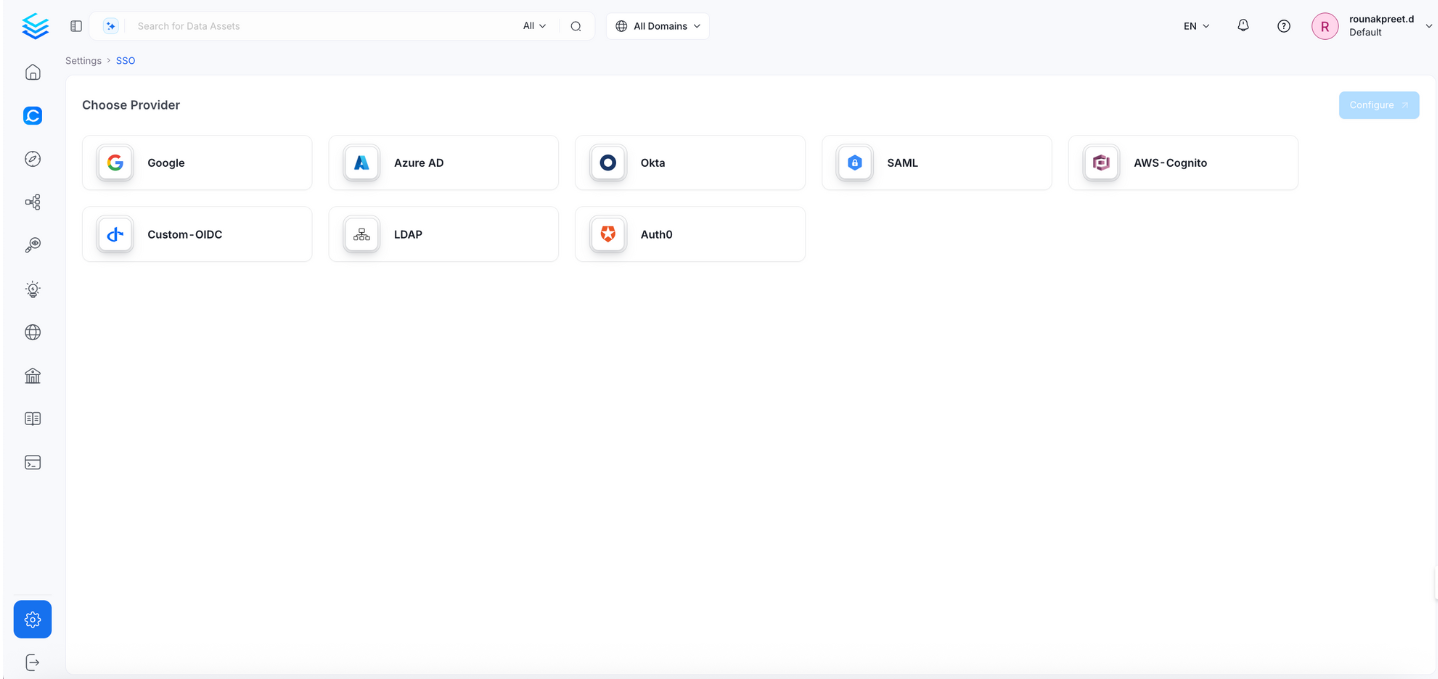

2. Select the service provider.
3. Click Configure to set up Single Sign-On (SSO). See Configuration Fields.
4. Click Save to finish the SSO configuration.

​

Setup Workflow

1. Get Collate Service Provider details from the configuration form:
   • SP Entity ID — Auto-generated, read-only.
   • Assertion Consumer Service (ACS) URL — Auto-generated, read-only.
2. Configure your Identity Provider:
   • Create a new SAML application in your IdP (ADFS, Okta, Azure AD, etc.).
   • Copy the SP Entity ID and paste it as the Entity ID / Application ID in your IdP.
   • Copy the ACS URL and paste it as the Reply URL / Callback URL / Consumer URL in your IdP.
   • Configure user attribute and claim mappings in your IdP.
3. Get Identity Provider details from your IdP:
   • IdP Entity ID
   • IdP SSO Login URL
   • IdP X.509 Certificate
4. Complete the configuration in Collate, then click Save.

​

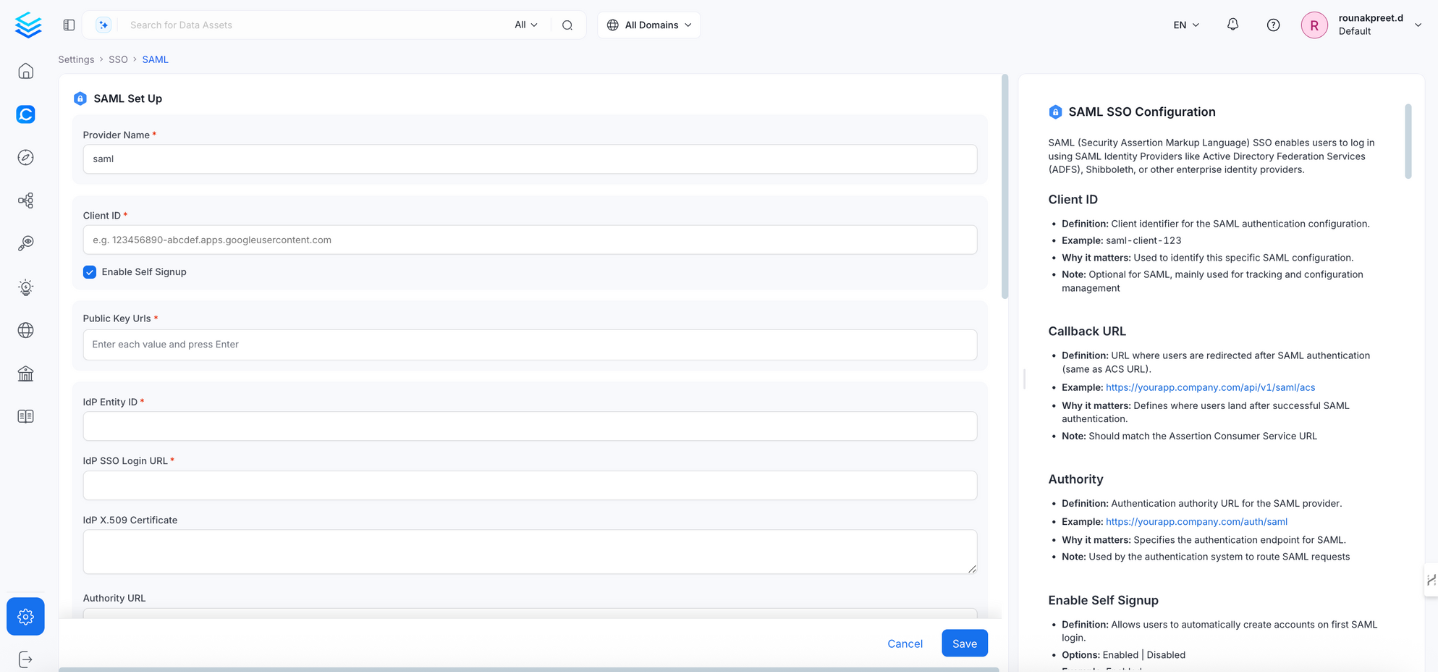

Configuration Fields

​

General Configuration

​

Provider Name

• Definition: A human-readable name for this SAML SSO configuration instance.
• Example: ADFS SSO, Company SAML, Okta SAML
• Why it matters: Helps identify this SSO configuration in logs and user interfaces.
• Note: This is a display name and doesn’t affect authentication functionality.

​

Enable Self Signup

• Definition: Allows users to automatically create Collate accounts on their first SAML login.
• Options: Enabled | Disabled
• Example: Enabled
• Why it matters: Controls whether new SAML users can join automatically or need manual approval.
• Note: Disable for stricter control over user access.

​

Identity Provider (IdP) Configuration

​

IdP Entity ID

• Definition: Unique identifier for the Identity Provider.
• Example: https://adfs.company.com/adfs/services/trust
• Why it matters: SAML messages use this to identify the IdP.
• Note: Must match exactly what is configured in your IdP.

​

IdP SSO Login URL

• Definition: URL where users are redirected to authenticate with the IdP.
• Example: https://adfs.company.com/adfs/ls/
• Why it matters: This is where authentication requests are sent.
• Note: Usually provided by your IdP administrator.

​

IdP X.509 Certificate

• Definition: Public certificate used to verify SAML assertions from the IdP.
• Example: -----BEGIN CERTIFICATE-----\nMIIC...certificate content...\n-----END CERTIFICATE-----
• Why it matters: Ensures SAML assertions are genuinely from your IdP.
• Note:
  • Must include the full certificate with BEGIN CERTIFICATE and END CERTIFICATE lines.
  • Can be multi-line.

​

Name ID Format

• Definition: Format of the SAML NameID element that identifies users.
• Default: urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
• Example: urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
• Why it matters: Determines how users are identified in SAML assertions.
• Note: Email format is most common and recommended. The Collate username is derived as the part before @.

​

Service Provider (SP) Configuration

​

SP Entity ID

• Definition: Unique identifier for Collate as a Service Provider.
• Example: https://openmetadata.company.com
• Why it matters: Your IdP uses this to identify Collate in SAML exchanges.
• Note:
  • This field is read-only — it is auto-populated based on your Collate deployment URL.
  • Copy this value and paste it as the Entity ID (or Application ID) in your SAML Identity Provider configuration.

​

Assertion Consumer Service (ACS) URL

• Definition: URL where the IdP sends SAML assertions after authentication.
• Example: https://openmetadata.company.com/callback
• Why it matters: This is where SAML responses are posted after login.
• Note:
  • This field is read-only — it is auto-populated based on your Collate deployment URL.
  • Copy this value and paste it as the ACS URL (also called Reply URL, Callback URL, or Consumer URL) in your SAML Identity Provider configuration.

​

SP X.509 Certificate

• Definition: Collate’s public certificate used by the IdP to verify signed requests.
• Example: -----BEGIN CERTIFICATE-----\nMIIC...certificate content...\n-----END CERTIFICATE-----
• Why it matters: Required if signing SAML requests sent from Collate.
• Note: Required when Send Signed Auth Request is enabled.

​

SP Private Key

• Definition: Private key used to sign SAML requests and decrypt encrypted assertions.
• Example: -----BEGIN PRIVATE KEY-----\nMIIE...private key content...\n-----END PRIVATE KEY-----
• Why it matters: Used to sign SAML requests and decrypt responses.
• Note:
  • Keep this secure and encrypted.
  • Required when signing or encryption is enabled.

​

Security Configuration

​

Strict Mode

• Definition: Only accept valid signed and encrypted assertions when the relevant flags are set.
• Default: false
• Example: true
• Why it matters: Enforces signature and encryption validation for enhanced security.
• Note: Recommended for production environments.

​

Send Signed Auth Request

• Definition: Whether to sign authentication requests sent to the IdP.
• Default: false
• Example: true
• Why it matters: Ensures authenticity of requests from Collate.
• Note: Requires SP Private Key to be configured.

​

Want Messages Signed

• Definition: Require entire SAML messages to be digitally signed by the IdP.
• Default: false
• Example: true
• Why it matters: Provides additional security beyond assertion signing.

​

Want Assertions Signed

• Definition: Require SAML assertions to be digitally signed by the IdP.
• Default: false
• Example: true
• Why it matters: Ensures assertions haven’t been tampered with.
• Note: Highly recommended for security.

​

Advanced Configuration

Token Validity

• Definition: Validity period in seconds for JWT tokens created from SAML responses.
• Default: 3600 (1 hour)
• Example: 7200
• Why it matters: Controls how long users stay logged in after SAML authentication.
• Note: This controls the Collate JWT token lifetime, not the SAML assertion lifetime.

​

Debug Mode

• Definition: Enable detailed logging for SAML authentication.
• Default: false
• Example: true
• Why it matters: Helps troubleshoot SAML configuration issues.
• Note: Only enable for troubleshooting. Disable in production for security and performance.

​

SAML Display Name Attributes

• Definition: SAML assertion attributes used to derive the user’s display name in Collate.
• Example: displayName, cn, givenName
• Why it matters: Controls how users’ names are shown in the Collate UI after SAML login.
• Note: Enter each attribute name and press Enter. Collate will use the first attribute that returns a non-empty value.

​

Enable Auto Redirect

• Definition: Automatically redirects users to the SAML Identity Provider without showing the Collate login page.
• Default: false
• Example: true
• Why it matters: Provides a seamless SSO experience — users who are already authenticated with the IdP are logged in automatically.
• Note: Disable if you need users to be able to choose between SSO and other login methods.

​

Authorizer Configuration

​

Admin Principals

• Definition: Users granted admin access in Collate.
• Example: ["john.doe", "jane.admin"]
• Why it matters: These users will have full administrative privileges in Collate.
• Note: Enter usernames only — not email addresses. For SAML with email NameID format, the username is derived as the part before @ (for example, john.doe@company.com → john.doe).

​

Principal Domain

• Definition: Default domain for user principals.
• Example: company.com
• Why it matters: Used to construct full user identifiers when only a username is provided.

​

Enforce Principal Domain

• Definition: Restricts login to users belonging to the configured Principal Domain.
• Default: false
• Example: true
• Why it matters: Adds an extra layer of security by limiting access to a specific domain.

​

Enable Secure Socket Connection

• Definition: Enables SSL/TLS for all SSO communication.
• Default: false
• Example: true
• Why it matters: Ensures encrypted communication between Collate and the IdP.
• Note: Recommended in production environments.

​

Allowed Domains

• Definition: List of email domains permitted to authenticate with Collate.
• Example: ["company.com", "partner.com"]
• Why it matters: Provides fine-grained control over which email domains can authenticate via SAML.
• Note:
  • Works in conjunction with Enforce Principal Domain.
  • Leave empty if you only use a single domain configured in Principal Domain.

​

Default OAuth Role

• Definition: Default role assigned to new users when they first sign in via SSO self-signup.
• Example: DataConsumer
• Why it matters: Controls the starting permission level for new users who join through self-signup.
• Note: Leave empty to create users without any role. Requires Enable Self Signup to be active. The role must already exist in Collate.

​

Summary Table

​

Troubleshooting

./bootstrap/openmetadata-ops.sh remove-security-config --force
