Azure AD SSO Authentication – Confidential Client Configuration

• Troubleshooting

​

Overview

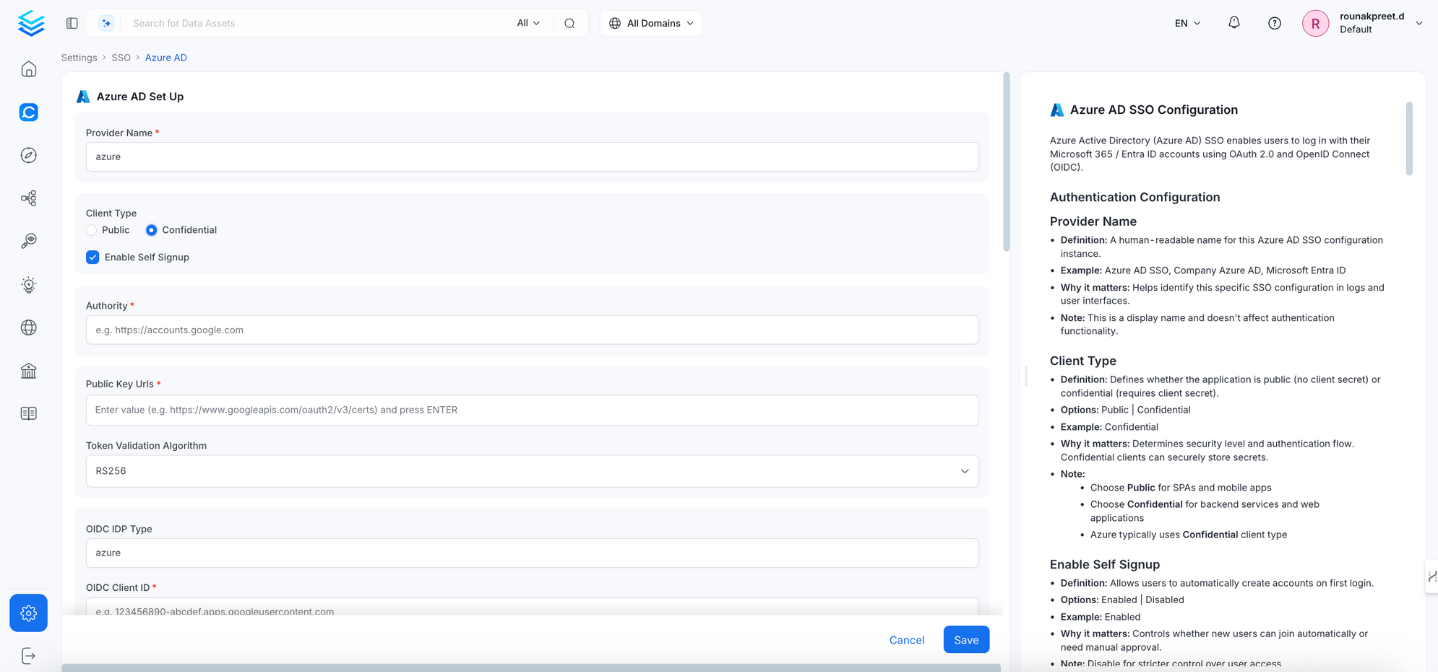

• Navigate to: Settings > SSO

• Select the service provider.

​

Confidential Configuration Fields

​

1. Client Type

• Definition: Defines whether the application is public (no client secret) or confidential (requires client secret).
• Options: Public | Confidential
• Example: Confidential
• Why it matters: Determines security level and OAuth flow.
• Note:
  • Use Confidential for secure applications and backend services.
  • Azure typically uses Confidential type.

​

2. Authority

• Definition: Azure AD endpoint that issues tokens for your tenant.
• Example: https://login.microsoftonline.com/your-tenant-id
• Why it matters: Tells Collate which Azure AD tenant to authenticate against.
• Note:
  • Replace your-tenant-id with your Azure AD tenant ID.
  • Use common for multi-tenant applications.

​

3. Public Key URLs

• Definition: List of URLs where Azure AD publishes public keys for token verification.
• Example: ["https://login.microsoftonline.com/common/discovery/v2.0/keys"]
• Why it matters: Verifies JWT token signatures.
• Note: Usually auto-discovered via the discovery URI.

​

4. Token Validation Algorithm

• Definition: Algorithm used to validate JWT token signatures.
• Options: RS256, RS384, RS512
• Default & Example: RS256
• Why it matters: Must match Azure AD’s signing algorithm.
• Note: Azure AD typically uses RS256.

​

5. Client Type (OIDC IDP Type)

• Definition: Defines whether the application is public (no client secret) or confidential (requires client secret).
• Options: Public | Confidential
• Example: Confidential
• Why it matters: Determines security level and OAuth flow.
• Note:
  • Use Confidential for secure applications and backend services.
  • Azure typically uses Confidential type.

​

6. OIDC Client ID

• Definition: Application (client) ID for OIDC authentication with Azure AD.
• Example: 12345678-1234-1234-1234-123456789012
• Why it matters: Identifies the application to Azure AD.
• Note: Same as the Application (client) ID in Azure AD app registration.

​

7. OIDC Client Secret

• Definition: Secret key for confidential client authentication.
• Example: abc123def456ghi789jkl012mno345pqr678st
• Why it matters: Required to securely authenticate with Azure AD.
• Note:
  • Create under Certificates & secrets in Azure AD.
  • Store securely and rotate periodically.

​

8. OIDC Request Scopes

• Definition: Permissions requested from Azure AD.
• Default: openid email profile
• Example: openid email profile User.Read
• Why it matters: Defines what user information Collate can access.
• Note: openid email profile is usually sufficient.

​

9. OIDC Discovery URI

• Definition: Azure AD’s OpenID Connect metadata endpoint.
• Example:
  https://login.microsoftonline.com/your-tenant-id/v2.0/.well-known/openid-configuration
• Why it matters: Auto-discovers OIDC endpoints.
• Note: Replace your-tenant-id with your Azure AD tenant ID.

​

10. OIDC Use Nonce

• Definition: Prevents replay attacks.
• Default & Example: true
• Why it matters: Enhances OIDC request security.

​

11. OIDC Preferred JWS Algorithm

• Default & Example: RS256
• Why it matters: Must match Azure AD’s token signing algorithm.
• Note: Rarely needs to be changed.

​

12. OIDC Response Type

• Definition: OAuth response type expected.
• Options: id_token | code
• Default & Example: id_token
• Why it matters: Determines the OAuth flow (code is more secure).

​

13. OIDC Disable PKCE

• Definition: Disables Proof Key for Code Exchange.
• Default & Example: false
• Why it matters: PKCE provides additional security.
• Note: Should typically remain enabled (false).

​

14. OIDC Max Clock Skew

• Definition: Allowed time difference (in seconds) between systems.
• Example: 0
• Why it matters: Prevents token rejection due to system clock differences.

​

15. OIDC Client Authentication Method

• Definition: How client authenticates with Azure AD.
• Options: client_secret_basic, client_secret_post, client_secret_jwt, private_key_jwt
• Default & Example: client_secret_basic
• Why it matters: Must align with Azure AD app registration.

​

16. OIDC Token Validity

• Definition: Duration in seconds that tokens remain valid.
• Default: 0 (use Azure AD default)
• Example: 3600
• Why it matters: Balances token lifetime vs. security.

​

17. OIDC Tenant

• Definition: Azure AD tenant identifier.
• Example: your-tenant-id or company.onmicrosoft.com
• Why it matters: Defines which tenant to authenticate against.
• Note: Use common for multi-tenant apps.

​

18. OIDC Server URL

• Definition: Base URL of Azure AD authentication server.
• Example: https://login.microsoftonline.com
• Why it matters: Defines the Azure AD issuer URL.

​

19. Callback URL

• Definition: Redirect URI where Azure AD sends auth responses.
• Example: https://yourapp.company.com/callback
• Why it matters: Must match Azure AD registered redirect URI.
• Note:
  • Add to Azure AD → App registrations → Authentication.
  • Always use HTTPS.

​

20. OIDC Max Age

• Definition: Max authentication age before re-login is required.
• Example: 3600
• Why it matters: Controls how often users must re-authenticate.

​

21. OIDC Prompt

• Definition: Controls login experience.
• Options: none, login, consent, select_account
• Example: select_account
• Why it matters: Defines how login prompts behave.
• Note:
  • login: Always prompt
  • consent: Prompt for permissions
  • select_account: Show account picker

​

22. OIDC Session Expiry

• Definition: How long user sessions remain valid (in seconds).
• Default & Example: 604800 (7 days)
• Why it matters: Controls session timeout for confidential clients.

​

23. JWT Principal Claims

• Definition: JWT fields used to identify users.
• Example: ["preferred_username", "email", "sub"]
• Why it matters: Determines how users are mapped in Collate.
• Note: Common claims: email, preferred_username, upn, sub

​

24. JWT Principal Claims Mapping

• Definition: Maps JWT claims to Collate user fields.
• Example:
  Copy

  Ask AI

  ["email:email", "name:displayName", "firstName:given_name"]

• Why it matters: Controls user profile mapping in Collate.
• Note: Format: "openmetadata_field:jwt_claim"

​

25. Admin Principals

• Definition: Users granted admin access in Collate.
• Example: ["[email protected]", "[email protected]"]
• Why it matters: Grants full admin privileges.
• Note: Match these to your JWT claims.

​

26. Bot Principals

• Definition: Service/bot accounts used for background operations.
• Example: ["[email protected]"]

​

27. Principal Domain

• Definition: Default domain for user principals.
• Example: company.com
• Why it matters: Helps construct full user identifiers.

​

28. Enforce Principal Domain

• Definition: Enforces user domain restriction.
• Default: false
• Example: true
• Why it matters: Restricts logins to specified domains only.

​

29. Enable Secure Socket Connection

• Definition: Enables SSL/TLS for all SSO communication.
• Default: false
• Example: true
• Why it matters: Ensures secure authentication flow.
• Note: Recommended in production.

​

Summary

​

Troubleshooting

./bootstrap/openmetadata-ops.sh remove-security-config --force
