DB2

DB2

PROD
OpenMetadata doesn’t ship DB2 connector in the ingestion contain by default. Please make sure you install the below Python package in the ingestion container if you are planning on running DB2 Connector. If you are running this as part of docker
docker exec -it openmetadata_ingestion pip install '.[db2]'
Using python pip, Please make sure you provide appropriate version of ingestion in below command
 pip install 'openmetadata-ingestion[db2]==1.2.4.0'
In this section, we provide guides and references to use the DB2 connector. Configure and schedule DB2 metadata and profiler workflows from the OpenMetadata UI:

​
Requirements

To create a new Db2 user please follow the guidelines mentioned here The user must have the below permissions to ingest the metadata.

​
DB2 for LUW (Linux, UNIX, Windows)

  • SELECT privilege on SYSCAT.SCHEMATA to fetch the metadata of schemas.
-- Grant SELECT on tables for schema metadata
GRANT SELECT ON SYSCAT.SCHEMATA TO USER_NAME;
  • SELECT privilege on SYSCAT.TABLES to fetch the metadata of tables.
-- Grant SELECT on tables for table metadata
GRANT SELECT ON SYSCAT.TABLES TO USER_NAME;
  • SELECT privilege on SYSCAT.VIEWS to fetch the metadata of views.
-- Grant SELECT on tables for view metadata
GRANT SELECT ON SYSCAT.VIEWS TO USER_NAME;

​
DB2 for z/OS

DB2 for z/OS uses SYSIBM.* catalog tables instead of SYSCAT.*. The connector auto-detects the platform and uses the appropriate catalog tables. The following permissions are required:
  • SELECT privilege on SYSIBM.SYSTABLES to fetch schemas, table names, and table comments.
GRANT SELECT ON SYSIBM.SYSTABLES TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSCOLUMNS to fetch column metadata for tables.
GRANT SELECT ON SYSIBM.SYSCOLUMNS TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSVIEWS to fetch view names and definitions.
GRANT SELECT ON SYSIBM.SYSVIEWS TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSINDEXES to fetch index and primary key information.
GRANT SELECT ON SYSIBM.SYSINDEXES TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSTABCONST to fetch table constraints (primary keys, unique constraints).
GRANT SELECT ON SYSIBM.SYSTABCONST TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSKEYCOLUSE to fetch key column usage for constraints.
GRANT SELECT ON SYSIBM.SYSKEYCOLUSE TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSFOREIGNKEYS to fetch foreign key column details.
GRANT SELECT ON SYSIBM.SYSFOREIGNKEYS TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSRELS to fetch foreign key relationships between tables.
GRANT SELECT ON SYSIBM.SYSRELS TO USER_NAME;
  • SELECT privilege on SYSIBM.SYSSEQUENCES to fetch sequence metadata.
GRANT SELECT ON SYSIBM.SYSSEQUENCES TO USER_NAME;

​
Profiler & Data Quality

Executing the profiler workflow or data quality tests, will require the user to have SELECT permission on the tables/schemas where the profiler/tests will be executed. More information on the profiler workflow setup can be found here and data quality tests here.

​
Metadata Ingestion

1

Visit the Services Page

Click `Settings` in the side navigation bar and then `Services`. The first step is to ingest the metadata from your sources. To do that, you first need to create a Service connection first. This Service will be the bridge between OpenMetadata and your source system. Once a Service is created, it can be used to configure your ingestion workflows.Visit Services Page
2

Create a New Service

Click on _Add New Service_ to start the Service creation.Create a new Service
3

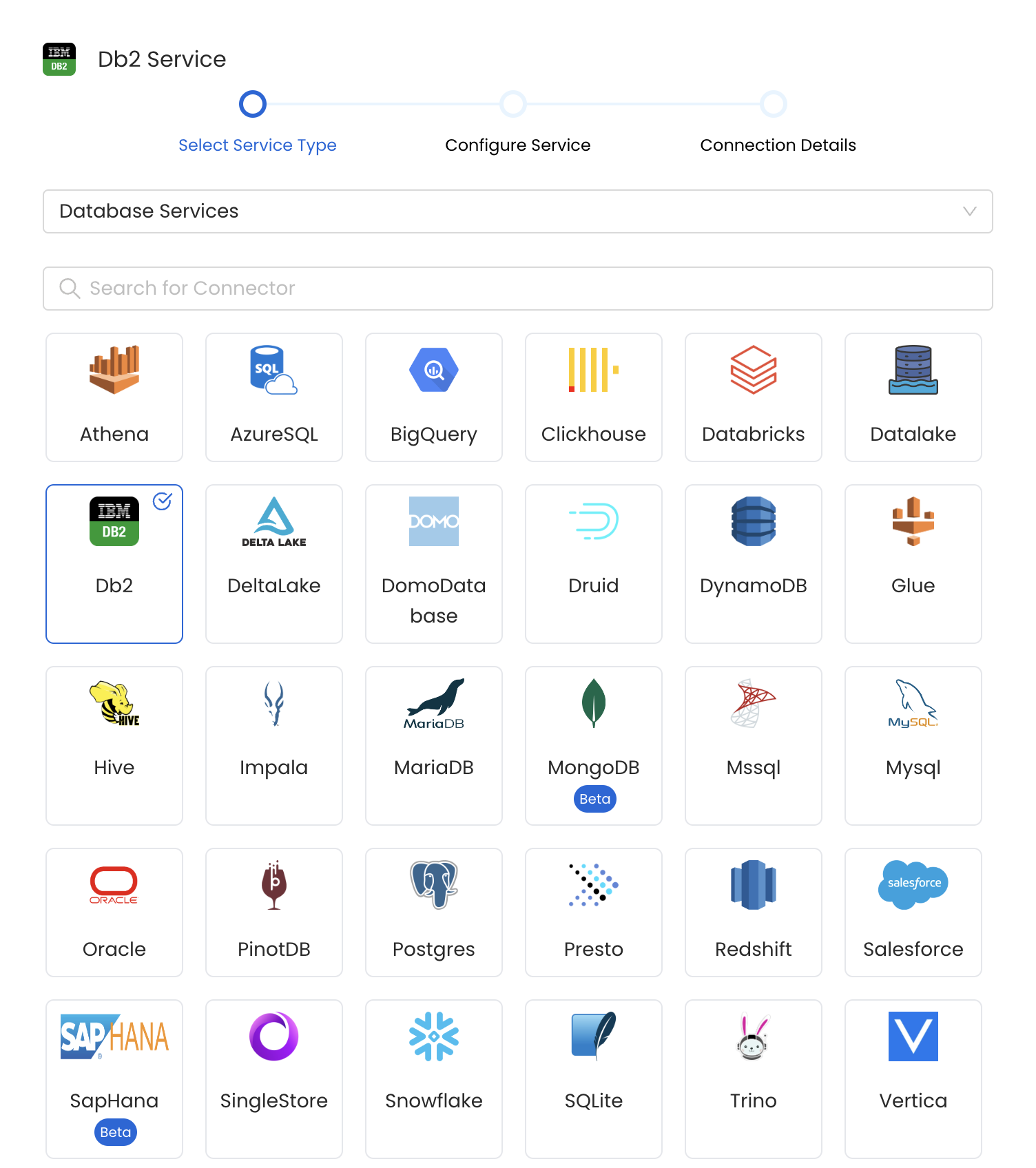

Select the Service Type

Select DB2 as the Service type and click _Next_.Select Service
4

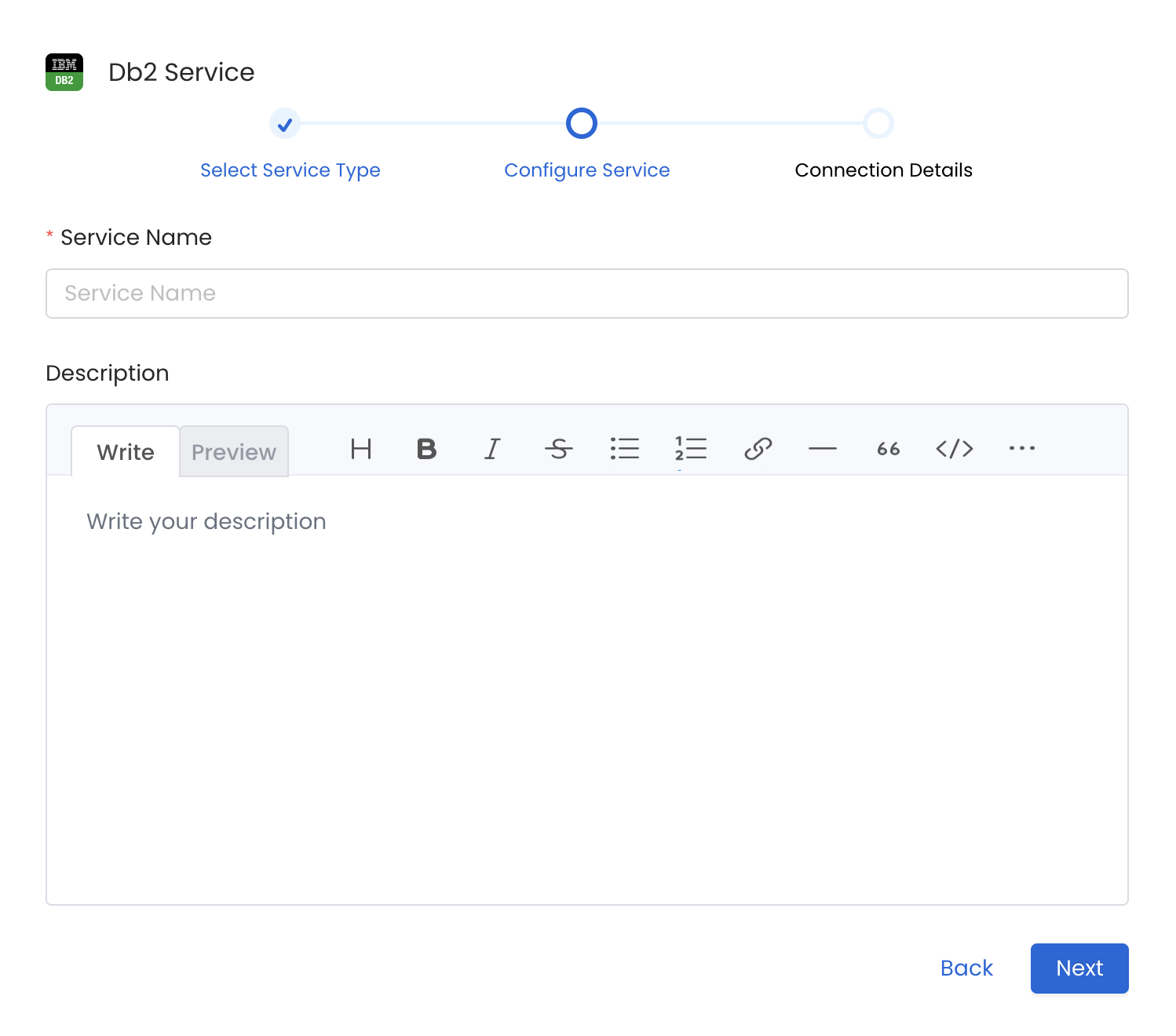

Name and Describe your Service

Provide a name and description for your Service.

Service Name

OpenMetadata uniquely identifies Services by their **Service Name**. Provide a name that distinguishes your deployment from other Services, including the other DB2 Services that you might be ingesting metadata from. Note that when the name is set, it cannot be changed.Add New Service
5

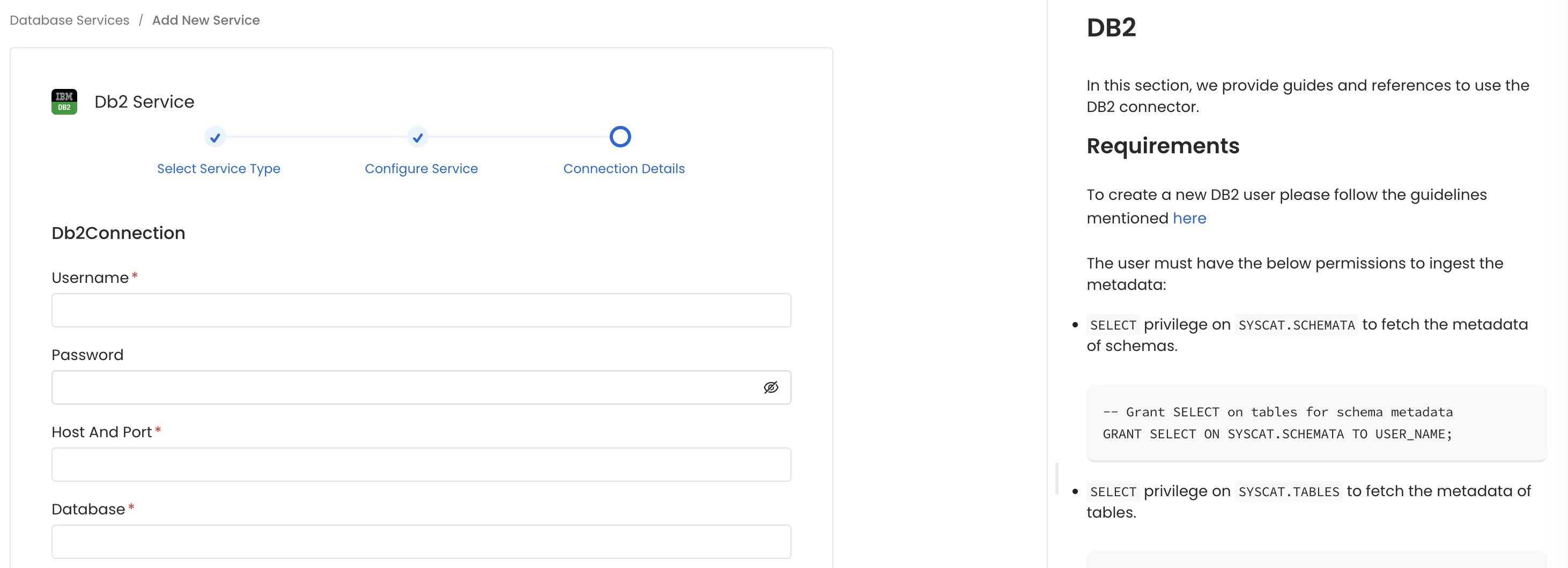

Configure the Service Connection

In this step, we will configure the connection settings required for DB2. Please follow the instructions below to properly configure the Service to read from your sources. You will also find helper documentation on the right-hand side panel in the UI.Configure Service connection

​
Connection Details

1

Connection Details

When using a Hybrid Ingestion Runner, any sensitive credential fields—such as passwords, API keys, or private keys—must reference secrets using the following format:
password: secret:/my/database/password
This applies only to fields marked as secrets in the connection form (these typically mask input and show a visibility toggle icon). For a complete guide on managing secrets in hybrid setups, see the Hybrid Ingestion Runner Secret Management Guide.
  • Username: Specify the User to connect to DB2. It should have enough privileges to read all the metadata.
  • Password: Password to connect to DB2.
  • database: Database of the data source.
  • Host and Port: Enter the fully qualified hostname and port number for your DB2 deployment in the Host and Port field.
  • License File Name: License file name in case the license is required for connection.
  • License: Contents of your license file if applicable, make sure to replace new lines with \n before pasting it here.
If you are using DB2 for IBM i:
  • From advanced config you need to chose ibmi scheme
  • In Host and Port you should not add the Port Number.
If you have a db2jcc_license_cisuz.jar file, it will not work with ibm_db. This file is a Db2 Connect license for the Java Driver. For non-Java drivers, such as the Python Client used in OpenMetadata ingestion, a Db2 Connect client-side license is required, typically named db2con.lic*. The db2jcc_license_cisuz.jar is specifically for Java-based clients, whereas OpenMetadata ingestion operates with a Python Client, making the .jar file incompatible.For activating a non-Java license for Db2 Connect Application Server Edition, Advanced Application Server Edition, Enterprise Edition, or Trial, follow these steps:
  • Download the license activation kit from IBM Passport Advantage: IBM PPA.
  • Unzip the package and locate the non-Java license file (e.g., db2consv_ee.lic).
  • Apply the .lic file to activate the license. For further reference, check this IBM post: Everything About Db2 Connect Licensing.
2

Advanced Configuration

Database Services have an Advanced Configuration section, where you can pass extra arguments to the connector and, if needed, change the connection Scheme.This would only be required to handle advanced connectivity scenarios or customizations.
  • Connection Options (Optional): Enter the details for any additional connection options that can be sent to database during the connection. These details must be added as Key-Value pairs.
  • Connection Arguments (Optional): Enter the details for any additional connection arguments such as security or protocol configs that can be sent during the connection. These details must be added as Key-Value pairs. Advanced Configuration
3

Test the Connection

Once the credentials have been added, click on Test Connection and Save the changes.Test Connection
4

Configure Metadata Ingestion

In this step we will configure the metadata ingestion pipeline, Please follow the instructions belowConfigure Metadata IngestionConfigure Metadata Ingestion

​
Metadata Ingestion Options

If the owner’s name is openmetadata, you need to enter [email protected] in the name section of add team/user form, click here for more info.
  • Name: This field refers to the name of ingestion pipeline, you can customize the name or use the generated name.
  • Database Filter Pattern (Optional): Use to database filter patterns to control whether or not to include database as part of metadata ingestion.
    • Include: Explicitly include databases by adding a list of comma-separated regular expressions to the Include field. OpenMetadata will include all databases with names matching one or more of the supplied regular expressions. All other databases will be excluded.
    • Exclude: Explicitly exclude databases by adding a list of comma-separated regular expressions to the Exclude field. OpenMetadata will exclude all databases with names matching one or more of the supplied regular expressions. All other databases will be included.
  • Schema Filter Pattern (Optional): Use to schema filter patterns to control whether to include schemas as part of metadata ingestion.
    • Include: Explicitly include schemas by adding a list of comma-separated regular expressions to the Include field. OpenMetadata will include all schemas with names matching one or more of the supplied regular expressions. All other schemas will be excluded.
    • Exclude: Explicitly exclude schemas by adding a list of comma-separated regular expressions to the Exclude field. OpenMetadata will exclude all schemas with names matching one or more of the supplied regular expressions. All other schemas will be included.
  • Table Filter Pattern (Optional): Use to table filter patterns to control whether to include tables as part of metadata ingestion.
    • Include: Explicitly include tables by adding a list of comma-separated regular expressions to the Include field. OpenMetadata will include all tables with names matching one or more of the supplied regular expressions. All other tables will be excluded.
    • Exclude: Explicitly exclude tables by adding a list of comma-separated regular expressions to the Exclude field. OpenMetadata will exclude all tables with names matching one or more of the supplied regular expressions. All other tables will be included.
  • Enable Debug Log (toggle): Set the Enable Debug Log toggle to set the default log level to debug.
  • Mark Deleted Tables (toggle): Set the Mark Deleted Tables toggle to flag tables as soft-deleted if they are not present anymore in the source system.
  • Mark Deleted Tables from Filter Only (toggle): Set the Mark Deleted Tables from Filter Only toggle to flag tables as soft-deleted if they are not present anymore within the filtered schema or database only. This flag is useful when you have more than one ingestion pipelines. For example if you have a schema
  • includeTables (toggle): Optional configuration to turn off fetching metadata for tables.
  • includeViews (toggle): Set the Include views toggle to control whether to include views as part of metadata ingestion.
  • includeTags (toggle): Set the ‘Include Tags’ toggle to control whether to include tags as part of metadata ingestion.
  • includeOwners (toggle): Set the ‘Include Owners’ toggle to control whether to include owners to the ingested entity if the owner email matches with a user stored in the OM server as part of metadata ingestion. If the ingested entity already exists and has an owner, the owner will not be overwritten.
  • includeStoredProcedures (toggle): Optional configuration to toggle the Stored Procedures ingestion.
  • includeDDL (toggle): Optional configuration to toggle the DDL Statements ingestion.
  • queryLogDuration (Optional): Configuration to tune how far we want to look back in query logs to process Stored Procedures results.
  • queryParsingTimeoutLimit (Optional): Configuration to set the timeout for parsing the query in seconds.
  • useFqnForFiltering (toggle): Regex will be applied on fully qualified name (e.g service_name.db_name.schema_name.table_name) instead of raw name (e.g. table_name).
  • Incremental (Beta): Use Incremental Metadata Extraction after the first execution. This is done by getting the changed tables instead of all of them. Only Available for BigQuery, Redshift and Snowflake
    • Enabled: If True, enables Metadata Extraction to be Incremental.
    • lookback Days: Number of days to search back for a successful pipeline run. The timestamp of the last found successful pipeline run will be used as a base to search for updated entities.
    • Safety Margin Days: Number of days to add to the last successful pipeline run timestamp to search for updated entities.
  • Threads (Beta): Use a Multithread approach for Metadata Extraction. You can define here the number of threads you would like to run concurrently.
Note that the right-hand side panel in the OpenMetadata UI will also share useful documentation when configuring the ingestion.
5

Schedule the Ingestion and Deploy

Scheduling can be set up at an hourly, daily, weekly, or manual cadence. The timezone is in UTC. Select a Start Date to schedule for ingestion. It is optional to add an End Date.Review your configuration settings. If they match what you intended, click Deploy to create the service and schedule metadata ingestion.If something doesn’t look right, click the Back button to return to the appropriate step and change the settings as needed.After configuring the workflow, you can click on Deploy to create the pipeline.Schedule the Workflow
6

View the Ingestion Pipeline

Once the workflow has been successfully deployed, you can view the Ingestion Pipeline running from the Service Page.View Ingestion Pipeline
If AutoPilot is enabled, workflows like usage tracking, data lineage, and similar tasks will be handled automatically. Users don’t need to set up or manage them - AutoPilot takes care of everything in the system.

Usage Workflow

Learn more about how to configure the Usage Workflow to ingest Query information from the UI.

Lineage Workflow

Learn more about how to configure the Lineage from the UI.

Profiler Workflow

Learn more about how to configure the Data Profiler from the UI.

Data Quality Workflow

Learn more about how to configure the Data Quality tests from the UI.

dbt Integration

Learn more about how to ingest dbt models’ definitions and their lineage.
