dbt Cloud Hybrid Runner

• Requirements
  • dbt Cloud Versions
• Metadata Ingestion
• Troubleshooting

​

Requirements

​

dbt Cloud Versions

​

dbt Cloud Permissions

​

dbt Cloud Account

• dbt Cloud multi-tenant or single tenant account is required.
• You must be on a Team or Enterprise plan.
• Your projects must be on dbt version 1.0 or later. Refer to Upgrade dbt version in Cloud to upgrade.

​

Metadata Ingestion

​

Step 1: Add New Service

1. In the left navigation, click Connections.
2. On the Connections page, click Add New Service.

​

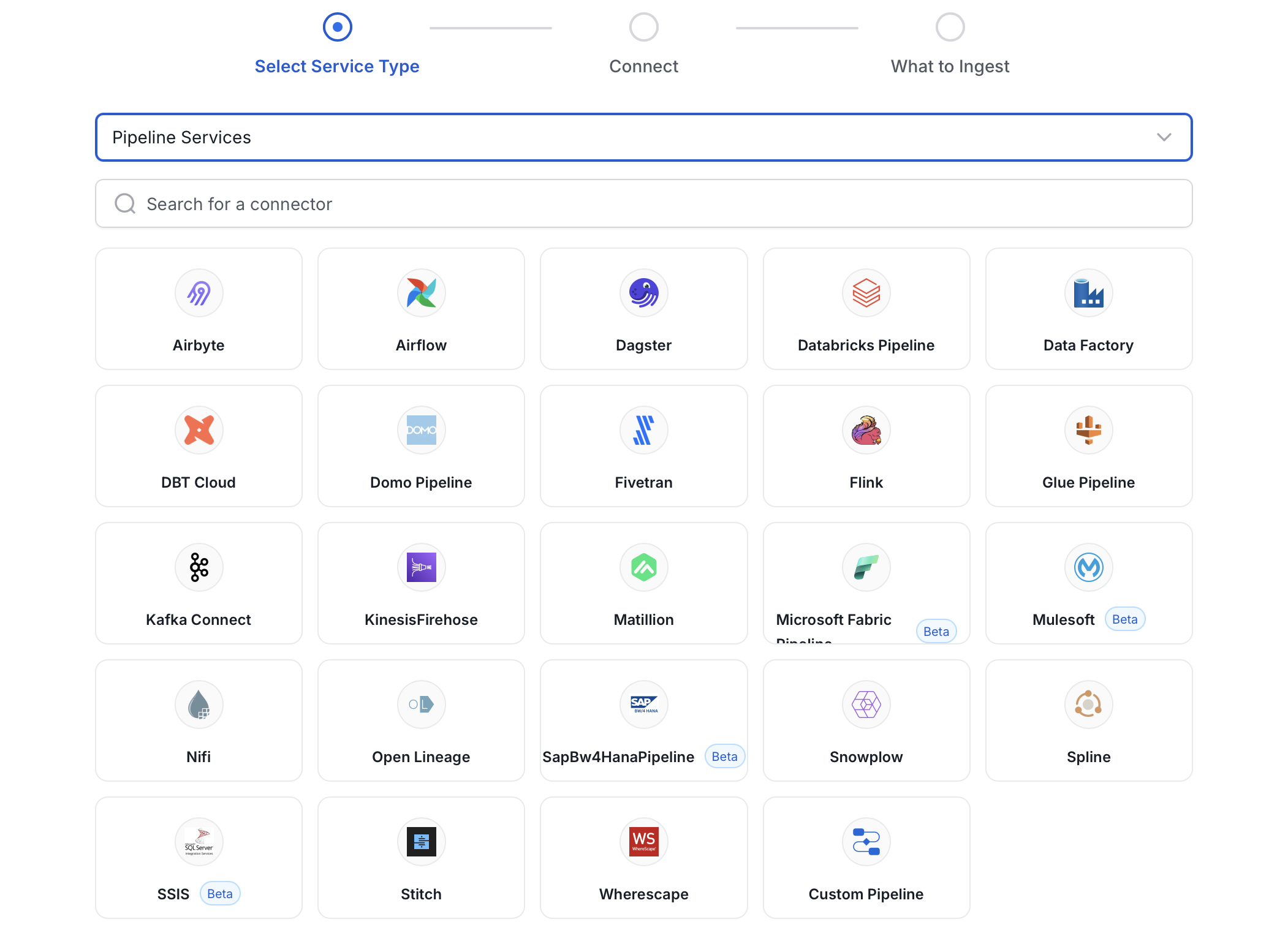

Step 2: Select a Service and Connector

​

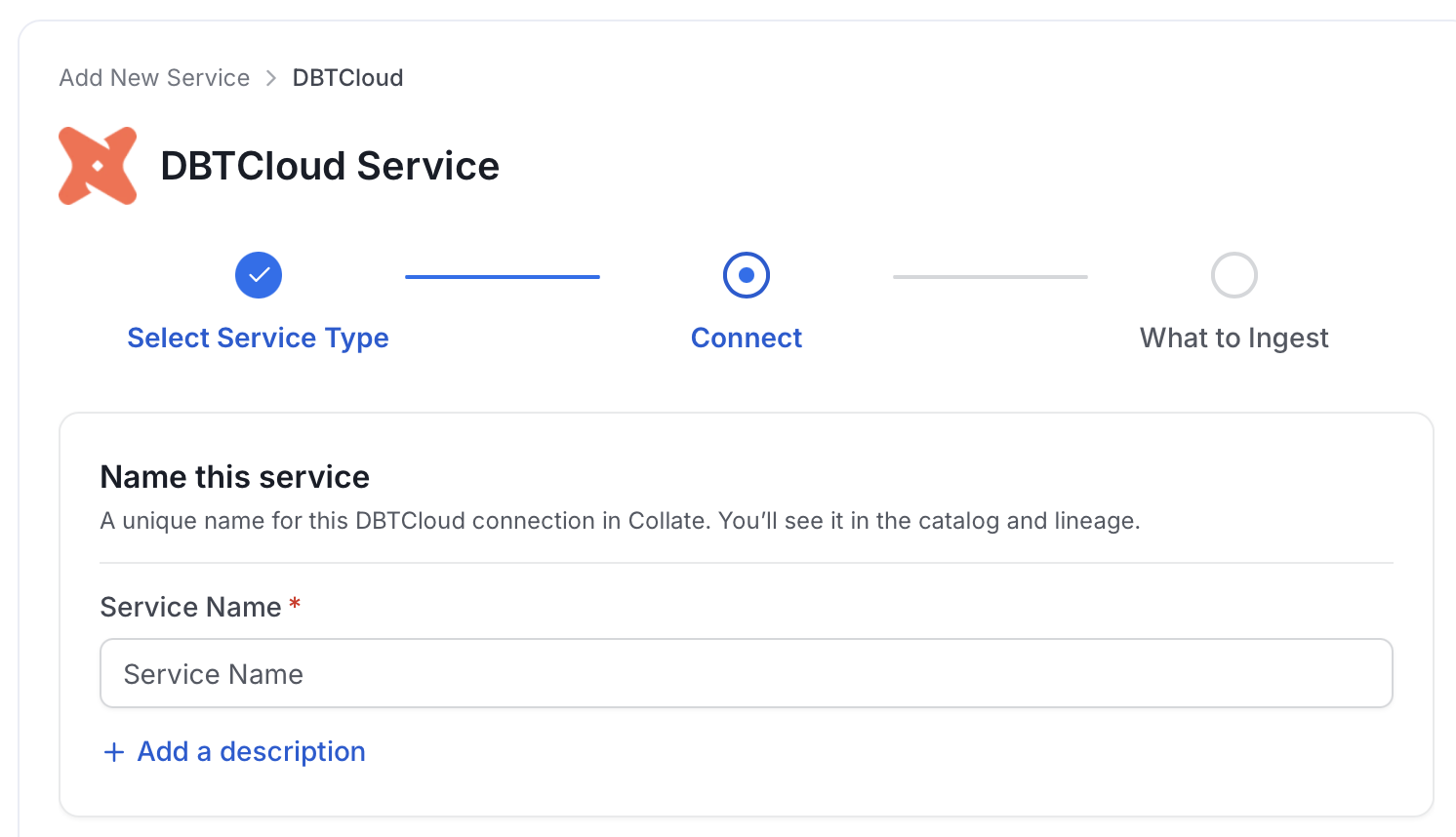

Step 3: Add Service Name and Description

• Enter a unique, descriptive Service Name. Collate identifies services by their service name. Enter a name that distinguishes this deployment from other DBT Cloud services you are ingesting metadata from.
• Optional: Enter a Description for the service.

​

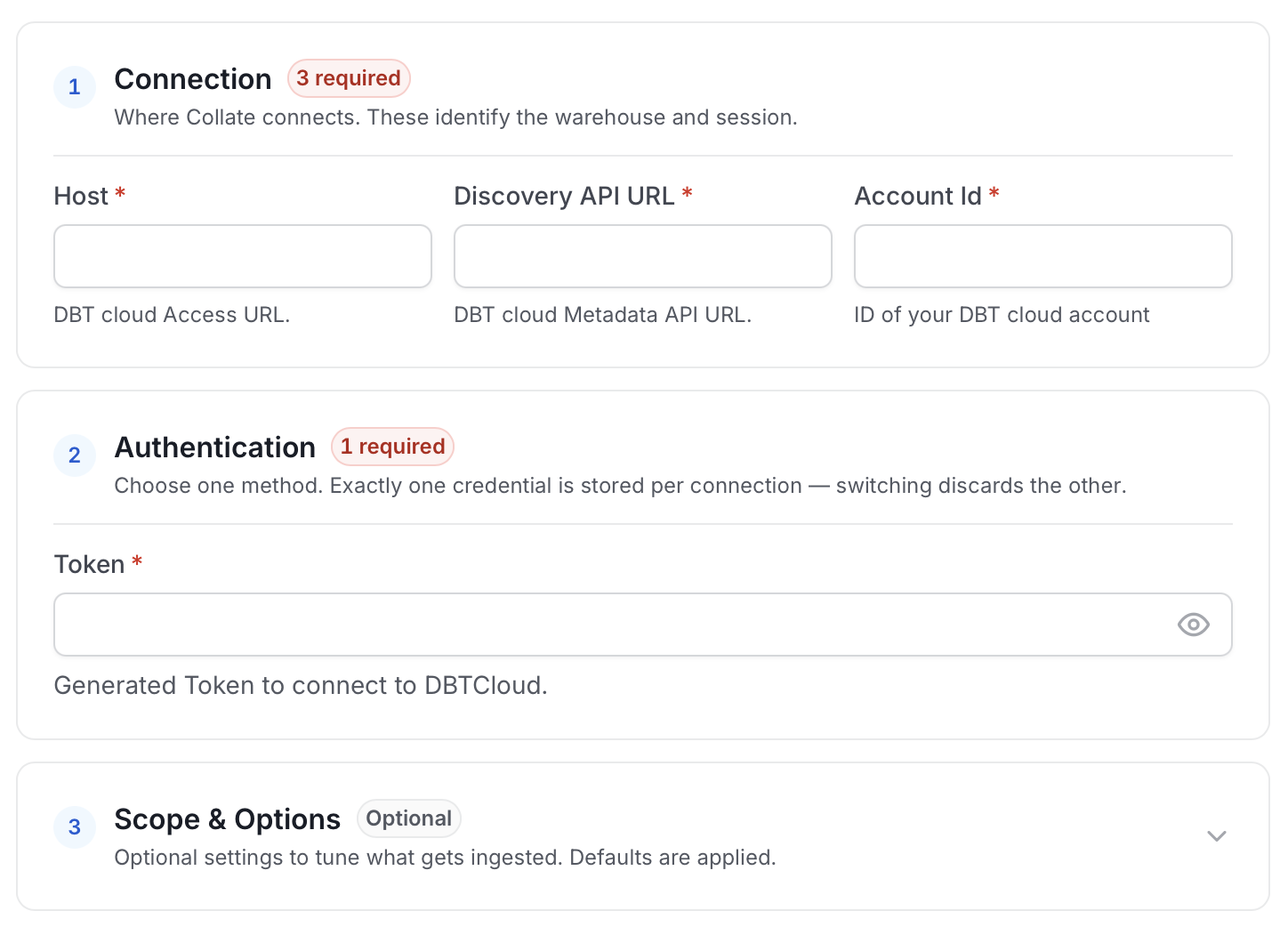

Step 4: Configure Connection Options

​

Select Ingestion Runner

​

Enter Connection Details

• Host: dbt Cloud Access URL eg.https://abc12.us1.dbt.com. Go to your dbt Cloud account settings to know your Access URL.
• Discovery API URL: dbt Cloud Access URL eg. https://metadata.cloud.getdbt.com/graphql. Go to your dbt Cloud account settings to know your Discovery API url. Make sure you have /graphql at the end of your URL.
• Account Id: The Account ID of your dbt Cloud Project. Go to your dbt Cloud account settings to know your Account Id. This will be a numeric value but in Collate this is parsed as a string.
• Job Ids: Optional. Job IDs of your dbt Cloud Jobs in your Project to fetch metadata for. Look for the segment after “jobs” in the URL. For instance, in a URL like https://cloud.getdbt.com/accounts/123/projects/87477/jobs/73659994, the job ID is 73659994. This will be a numeric value but in Collate this is parsed as a string. If not passed all Jobs under the Account id will be ingested.
• Project Ids: Optional. Project IDs of your dbt Cloud Account to fetch metadata for. Look for the segment after “projects” in the URL. For instance, in a URL like https://cloud.getdbt.com/accounts/123/projects/87477/jobs/73659994, the job ID is 87477. This will be a numeric value but in Collate this is parsed as a string. If not passed all Projects under the Account id will be ingested. Note that if both Job Ids and Project Ids are passed then it will filter out the jobs from the passed projects. Any Job Ids not belonging to the Project Ids will also be filtered out.
• Token: The Authentication Token of your dbt Cloud API Account. To get your access token you can follow the docs here. Make sure you have the necessary permissions on the token to run graphql queries and get job and run details.

password: secret:/my/database/password

​

Test Connection

​

Step 5: Configure Ingestion Options

​

How Filter Patterns Work

• Include: Add one or more comma-separated regular expressions. Collate ingests only assets whose names match at least one expression. Leave blank to include all assets.
• Exclude: Add one or more comma-separated regular expressions. Collate skips any asset whose name matches an expression. Leave blank to exclude nothing.

• contains: matches any name containing the value. For example, sales matches my_sales_data and sales_2024.
• starts with: matches names beginning with the value. For example, prod_ matches prod_db and prod_schema.
• ends with: matches names ending with the value. For example, _raw matches events_raw and logs_raw.
• is exactly: matches the exact name only. For example, analytics matches only analytics.
• matches regex: matches names using a regular expression. For example, ^prod_.*_v\d+$ matches prod_events_v1.

• Pipeline: Controls which pipelines (DAGs, jobs, or workflows) Collate ingests from the source.

• Scan Mode: You can choose between the following scan modes:
  • Scan all: Ingests every asset of that type the connector can access. This is the default.
  • Only specific: Enables include rules so only assets matching at least one rule are ingested.
• Exclude system toggle: Use this toggle to automatically filter out system-reserved names defined by the connector — for example, Exclude system databases for the Databases section.
• Always exclude: Add permanent exclusion rules (shown in red). Assets matching these rules are never ingested, regardless of include rules.
• Preview: Shows a real-time summary of what will be in scope based on your current rules.
• Include rules (available only in Only specific mode): Click + Add to define a rule. Added rules appear as chips; an asset is included if it matches any rule.

​

Step 6: Create & Deploy

​

Configure Metadata Agent and Schedule Ingestion

1. In the left navigation, click Connections and select your service.
2. Click the Agents tab.
3. Click Add Agent and select Metadata from the dropdown. For some services, the dropdown is not available and clicking Add Agent takes you directly to the agent configuration page.
4. On the Configure Ingestion page, do the following and click Next.
   • Name this Ingestion: Enter a unique recognizable name for this ingestion pipeline.
   • Agent Setup: Configure the core parameters for this agent. The following fields are available:

     Field	Default	Description
     Ownership Update Mode	replace	Set how owners from source metadata update Pipeline owners. In replace mode, resolved owners from the current source replace existing owners. In append mode, resolved owners are appended to active existing Pipeline owners.
     Db Service Names	—	List of database service names used for lineage resolution.
     Storage Service Names	—	List of storage service names used for lineage resolution.
     Messaging Service Names	—	List of messaging service names used for lineage resolution.
     Status Lookback Days	1	Number of days of pipeline run status history to ingest. Only runs within the last N days will be fetched.
     Include Lineage	On	Turn off to stop fetching lineage from pipelines.
     Mark Deleted Pipeline	On	Soft-delete pipelines in Collate when they are removed from the source. Associated entities like lineage are also deleted.
     Include UnDeployed Pipelines	On	Toggle whether un-deployed pipelines should be ingested. If set to false, only deployed pipelines will be ingested.


   • Filter Patterns: Apply include or exclude rules to scope which pipelines this agent ingests. These follow the same filter options described in Step 5.
   • Scope & Behaviour: Control what metadata to include and how to handle deletions. Toggle each option on or off based on your needs:

     Toggle	Default	Description
     Enable Debug Log	Off	Sets the ingestion log level to DEBUG. Useful for troubleshooting.
     Override Metadata	Off	When on, source values overwrite existing descriptions, tags, owners, and display names in Collate. When off, Collate only updates fields that have no existing value.
     Override Lineage	Off	When on, existing lineage is replaced with newly extracted lineage on each run.


5. On the Schedule Interval page, set when the agent runs:
   • Schedule: Choose a preset interval (Hourly, Daily, Weekly, Monthly) or enter a custom cron expression.
   • On-Demand: No automatic schedule; trigger the agent manually when needed.

6. Click Add to deploy the agent.

​

Displaying Lineage Information

1. Ingest Source and Sink Database Metadata: Identify both the source and sink database used by the dbt Cloud service for example Redshift. Ingest metadata for these database.
2. Ingest dbt Cloud Service Metadata: Finally, Ingest your dbt Cloud service. By successfully completing these steps, the lineage information for the service will be displayed.

​

Missing Lineage

1. dbt Cloud Account: Make sure that the dbt Cloud instance you are ingesting has the necessary permissions to fetch jobs and run graphql queries over the API.
2. Metadata Ingestion: Ensure that metadata for both the source and sink database is ingested and passed to the lineage system. This typically involves configuring the relevant connectors to capture and transmit this information.
3. Last Run Successful: Ensure that the Last Run for a Job is successful as Collate gets the metadata required to build the lineage using the last Run under a Job.

​

Troubleshooting
